SKU AR-X4 Category


In Stock

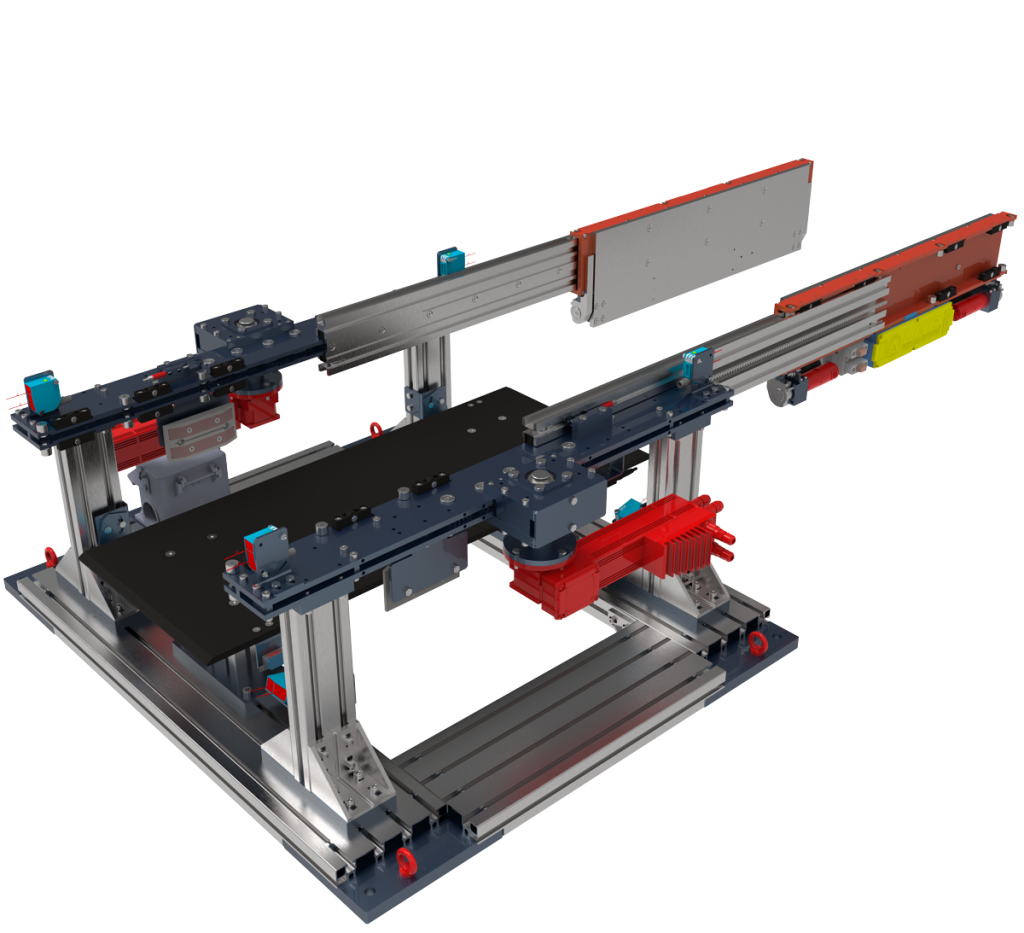

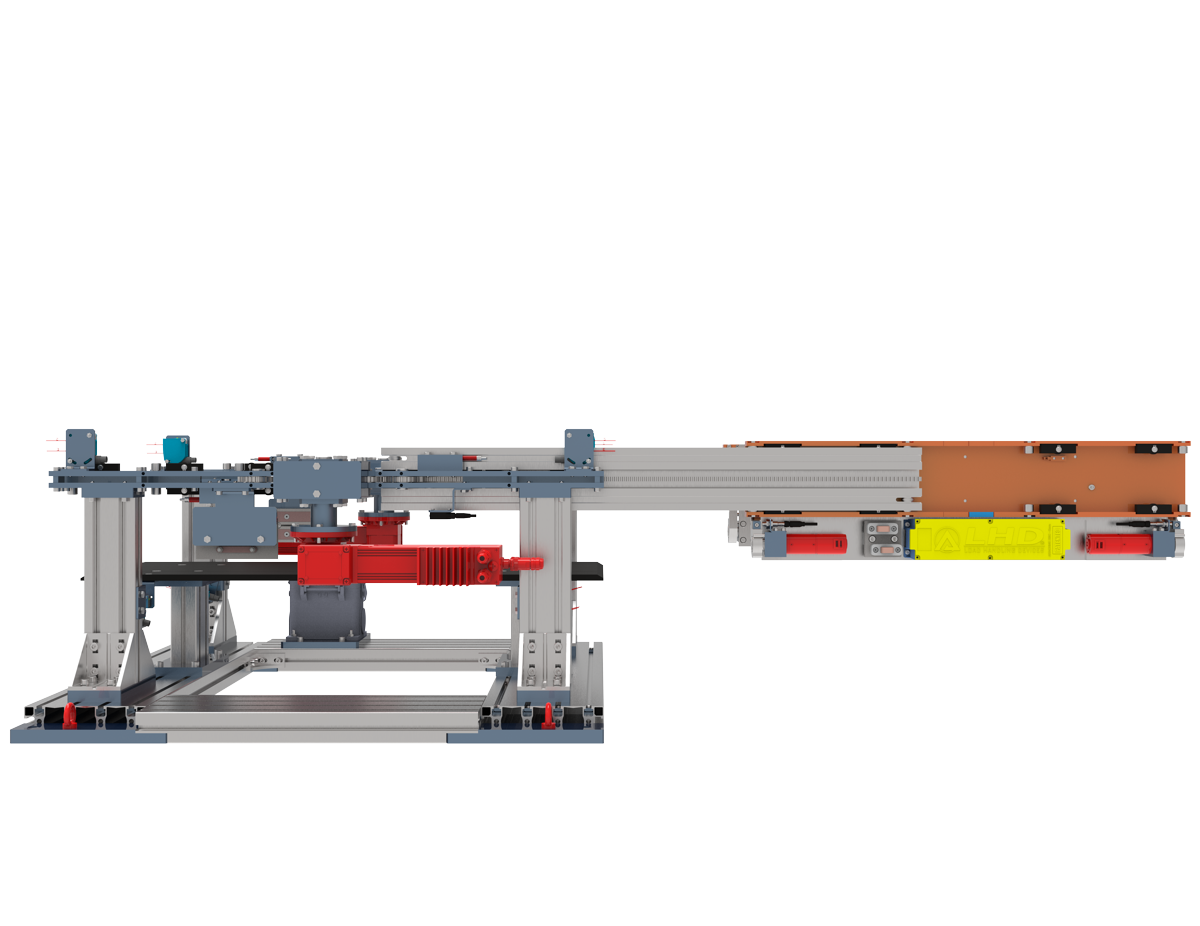

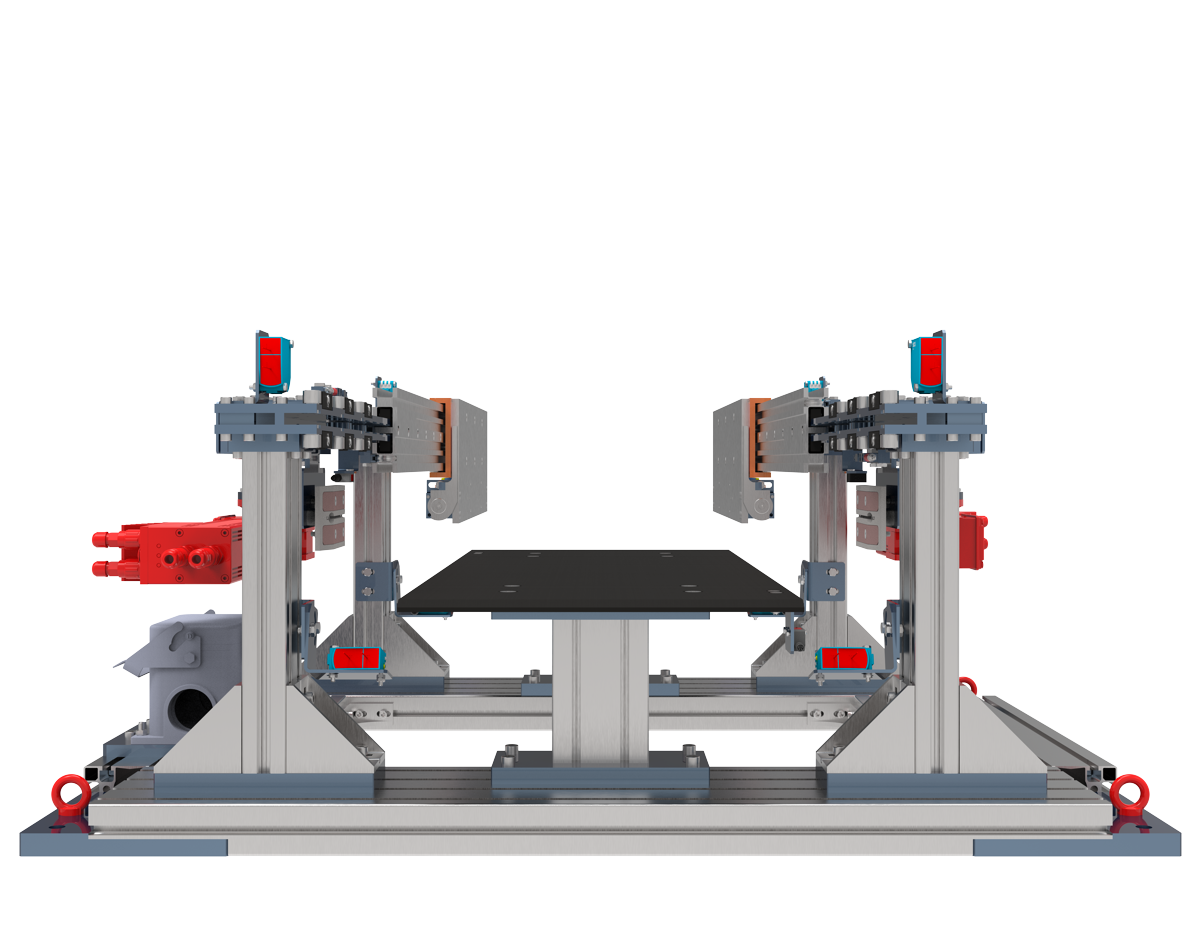

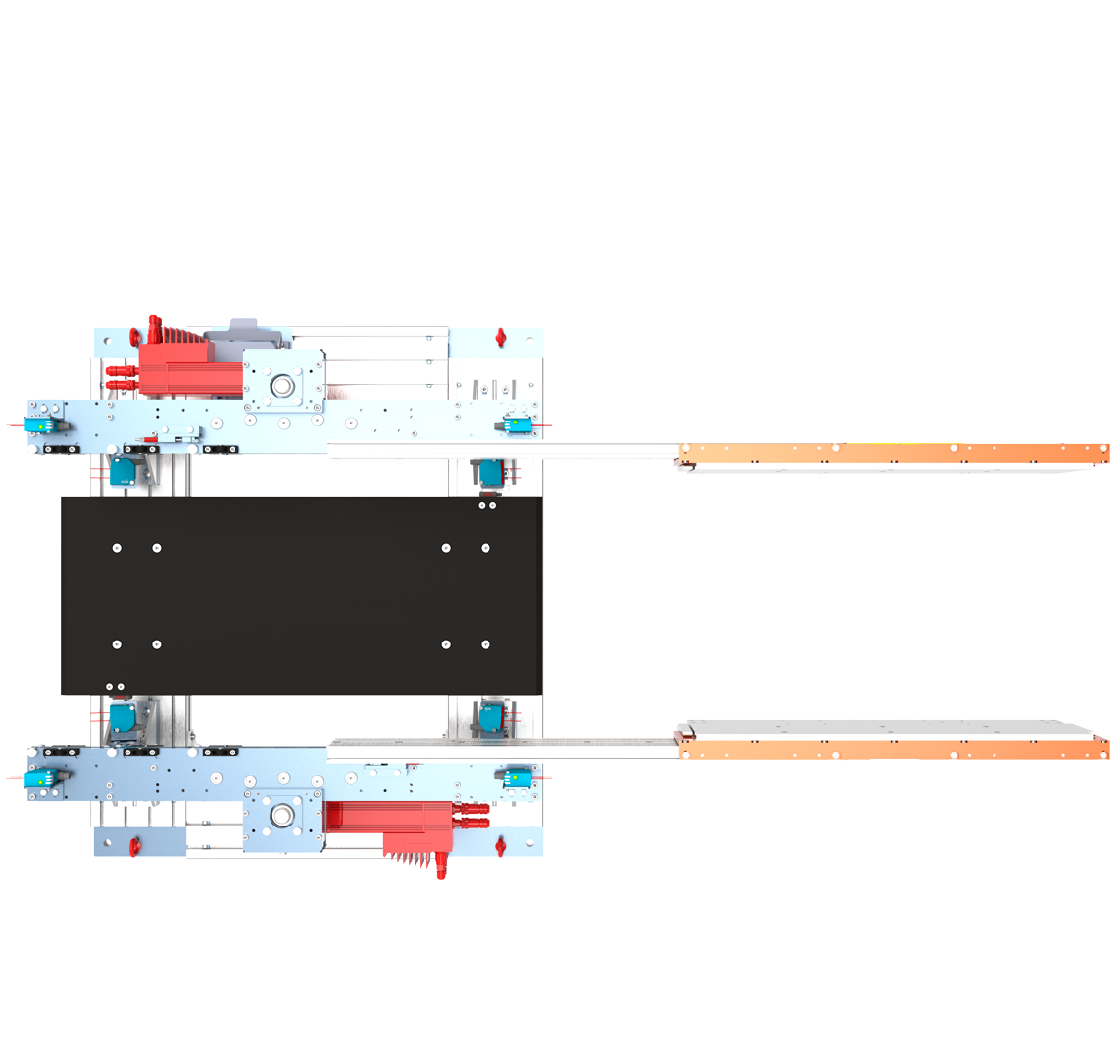

ARACHNE X4 – Load up to 50 Kg (110 Lb) The ARACHNE X4 is an interesting latest generation equipment, being lately introduced. The ARACHNE can carry out the handling of one plastic box (or carton) from 200×300 to 600×400 mm with 50 Kg weight, in simple depth. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Available with: single belt, sheet flat, rolls conveyor, width adjustment, automatic bridge to avoid gap between shelf and system. With its telescopic arms thickness of only 50 mm, ARACHNE allows reducing the spaces between the boxes in the cells, thus reducing the width of the whole shelf.


Carton Loader – Load up to 50 kg (110 Lb)

Standard length: from 700 mm to 1200 mm
Maximum stroke: from 850 mm to 1300 mm
Maximum payload: 50 kg (110 Lb)
Acceleration without load: up to 1 [m/s2]
Speed without load: up to 45 [m/min]
