ARACHNE X8

당사의 표준이 귀사의 요구사항에 맞지 않나요?
저희에게 연락하여 솔루션을 설계하세요!

SKU AR-X8 Category

ARACHNE X8

In Stock

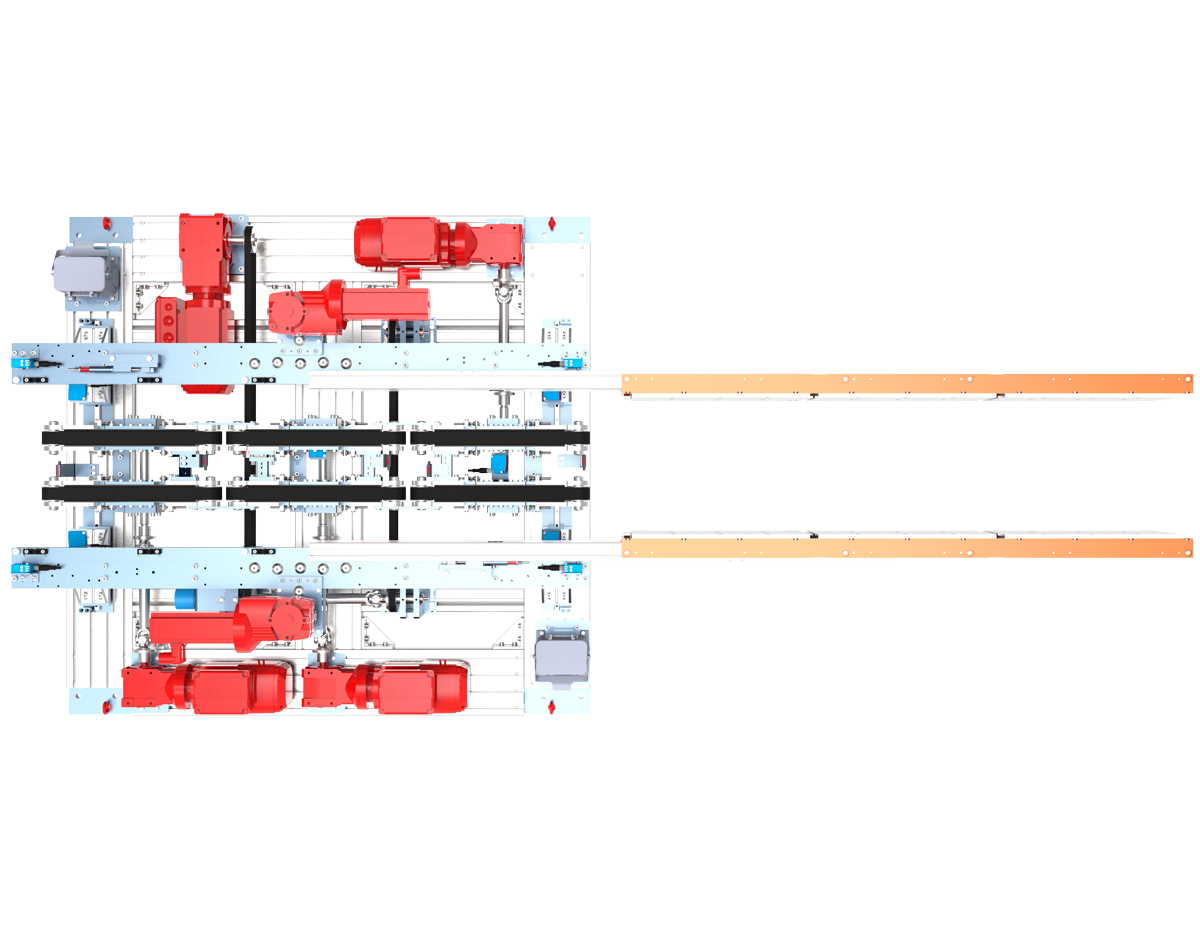

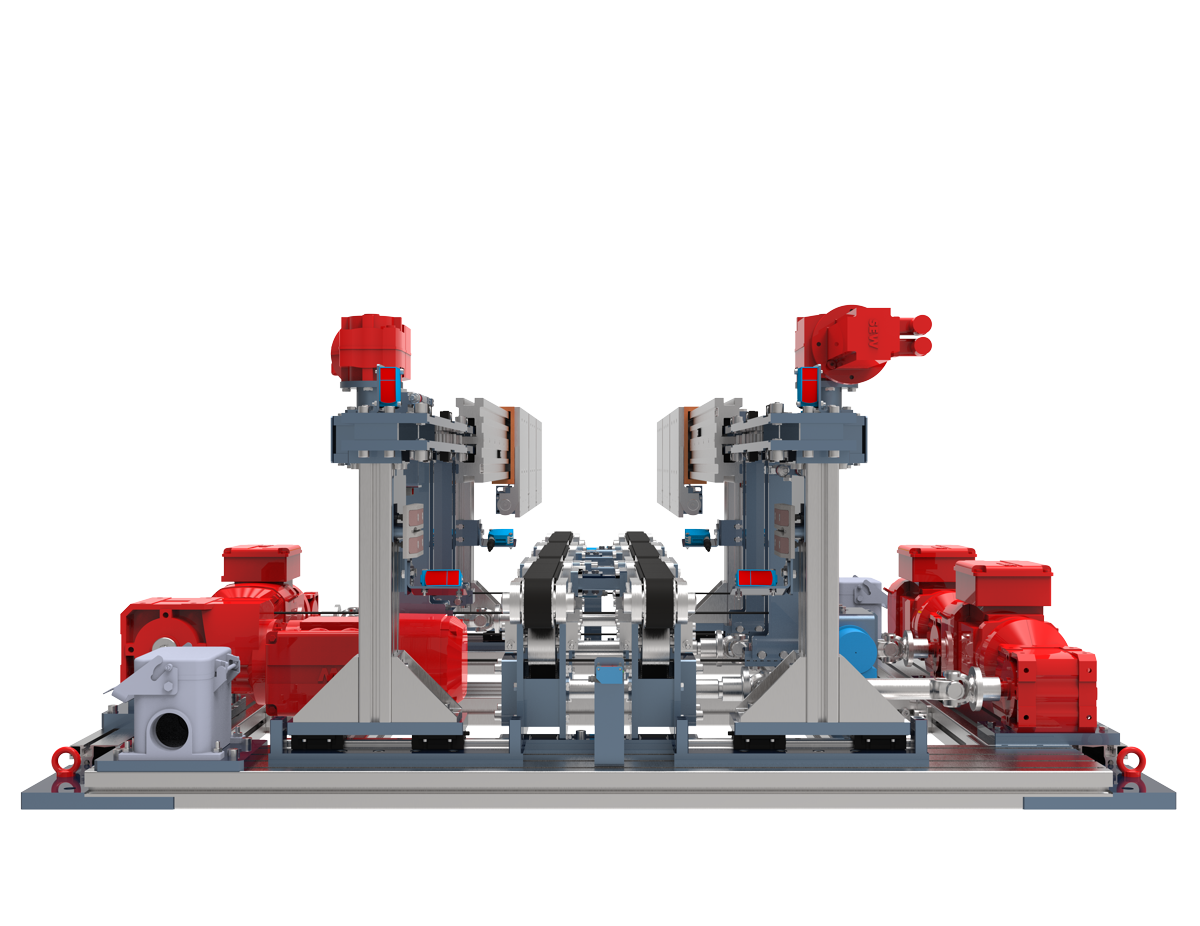

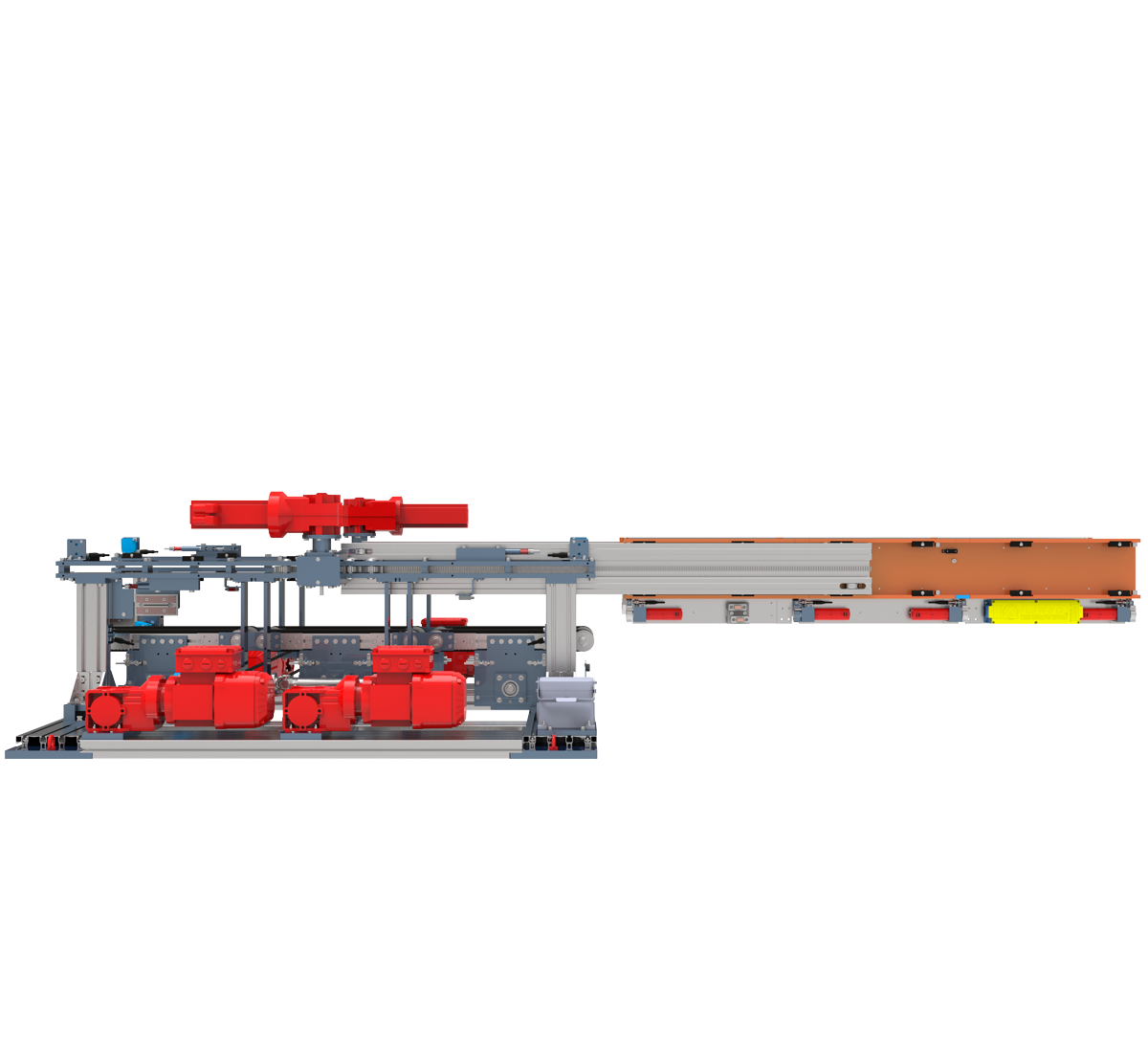

ARACHNE X8 – Load up to 120 Kg (265 Lb) A three boxes loader patented solution, 40+40+40 Kg. Can carry out three plastic boxes (or carton) from 200×300 to 600×400 mm with 40 Kg weight each one. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Available optional: single belt, double belts, triple belts, sheet flat, single rolls conveyor, width adjustment, automatic bridge to avoid gap between shelf and system. Telescopic arms thickness of 70 mm.

Description

ARACHNE X8
Carton Loader – Load up to 120 Kg (265 Lb)

Standard length: from 1300 mm to 2015 mm
Maximum stroke: from 1375 mm to 2070 mm
Maximum payload: 3 x 40Kg (3 x 88,5 Lb)
Acceleration without load: up to 1 [m/s2]
Speed without load: up to 45 [m/min]
