ARACHNE XXX6

당사의 표준이 귀사의 요구사항에 맞지 않나요?
저희에게 연락하여 솔루션을 설계하세요!

SKU AR-XXX6 Category

ARACHNE XXX6

In Stock

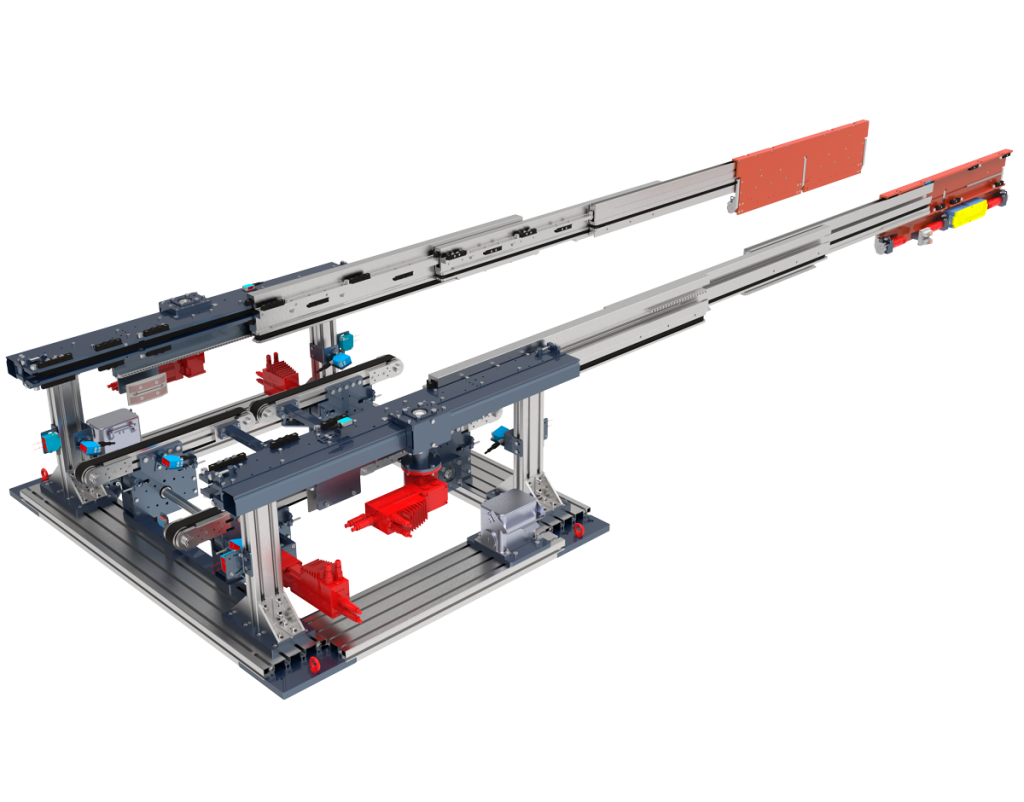

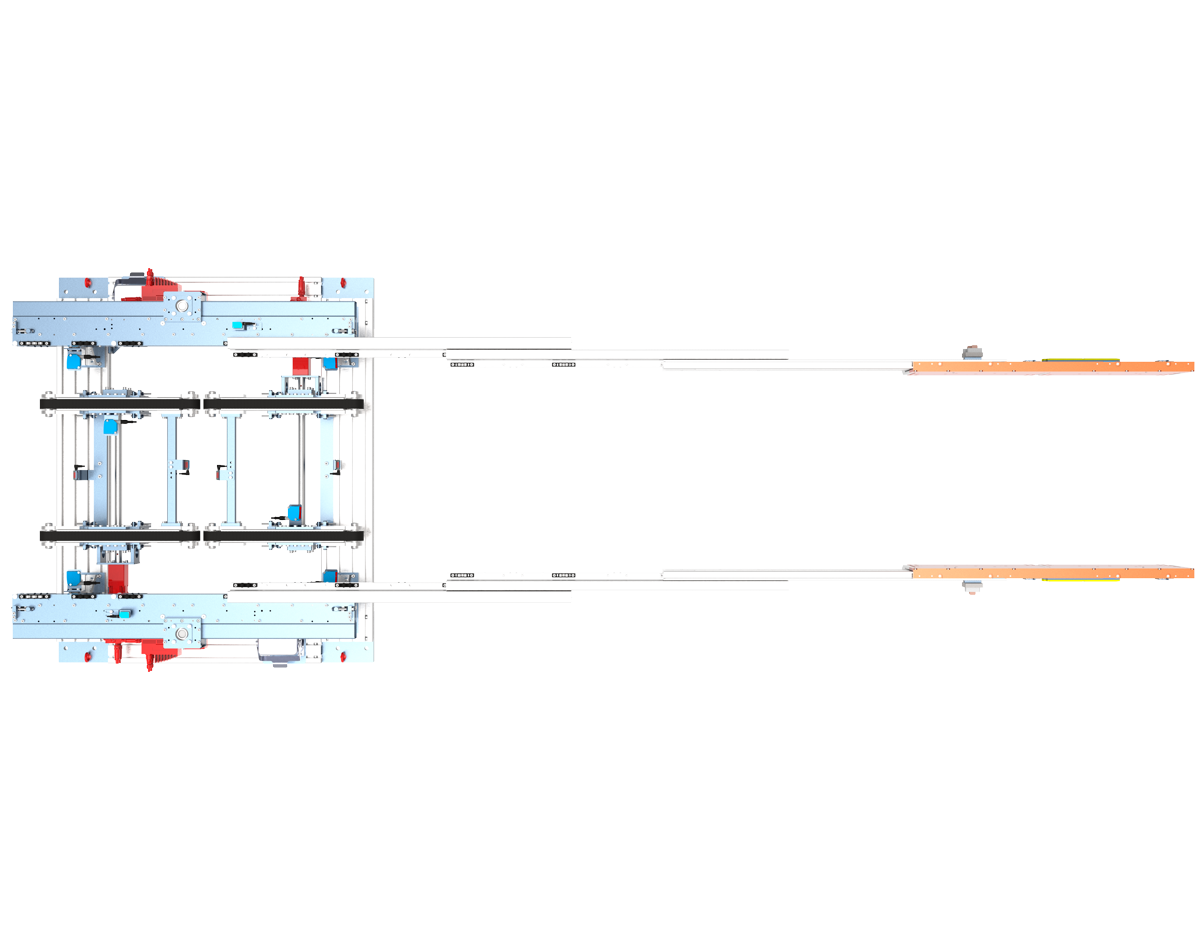

ARACHNE XXX6 – Load up to 50 kg (110 Lb) The ARACHNE XXX6 is a patented double-depth solution in rack, two boxes on board. The ARACHNE can carry out the handling of 1+1 plastic box (or carton) about as big as 600×400 mm with 30 Kg weight. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. The single belt system on board the XX6 version can handle two boxes at once. On board is possible: single belt, double belts, sheet flat, single rolls conveyor, width adjustment, automatic bridge to avoid gap between shelf and system. With his telescopic arms thickness of only 74 mm, ARACHNE allows reducing the spaces between the boxes in the cells, thus reducing the width of the whole shelf.

Description

ARACHNE XXX6
Carton Loader – Load up to 50 kg (110 Lb)
Standard length: from 800 mm to 1350 mm
Maximum stroke: from 1750 mm to 2885 mm
Maximum payload: 2x 30 Kg (2 x 66 Lb)
Acceleration without load: up to 1 [m/s2]
Speed without load: up to 45 [m/min]
