SKU AR-Z4 Category


Out of Stock

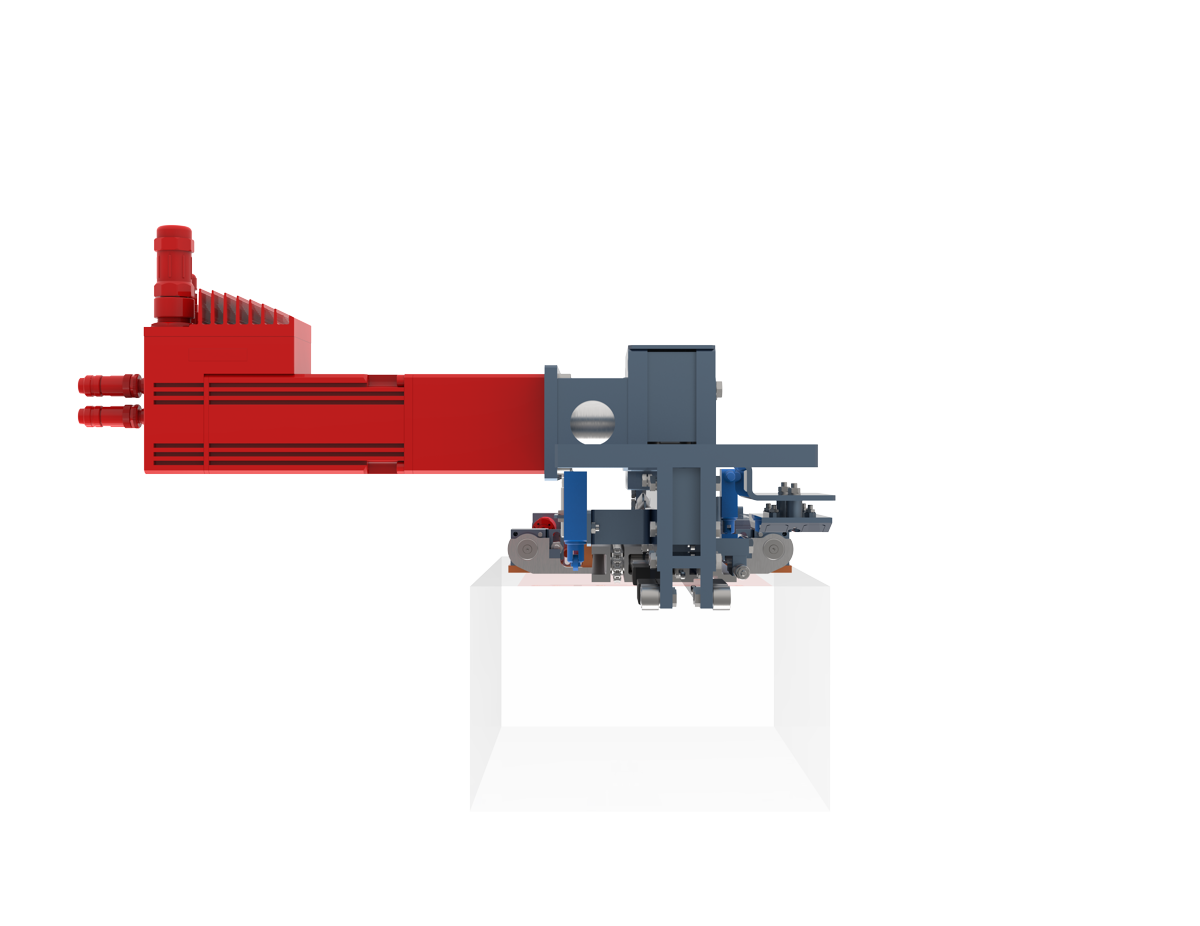

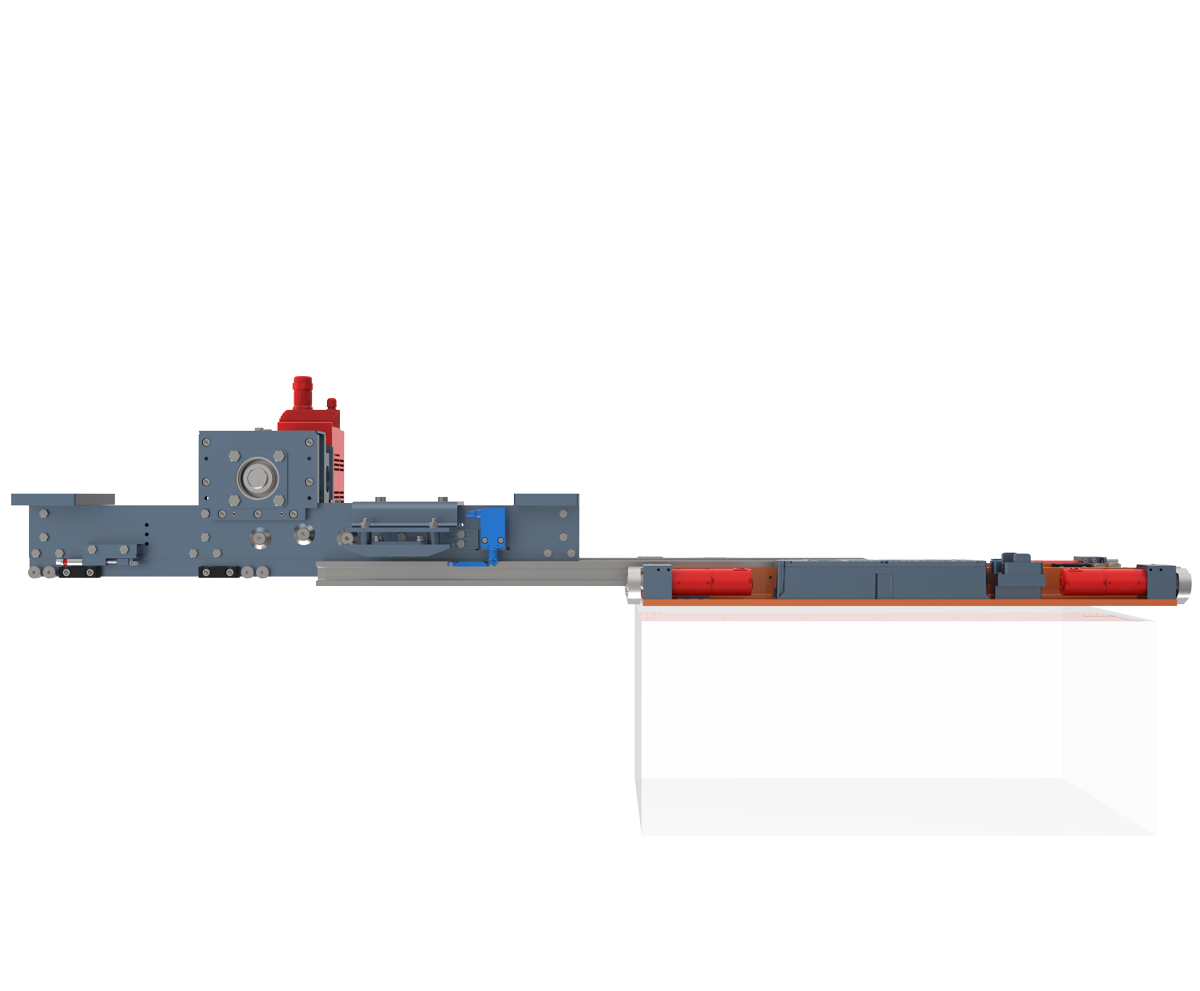

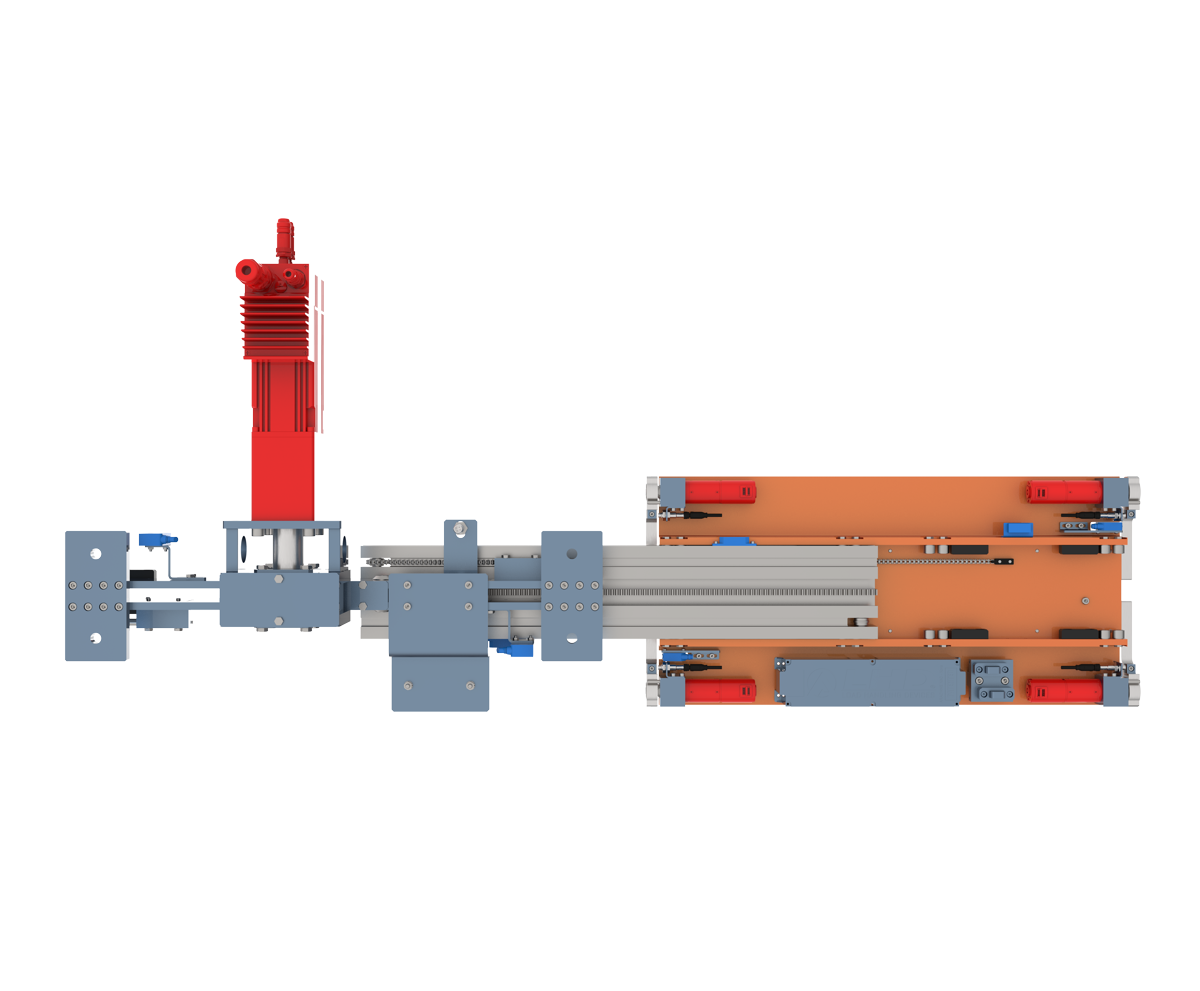

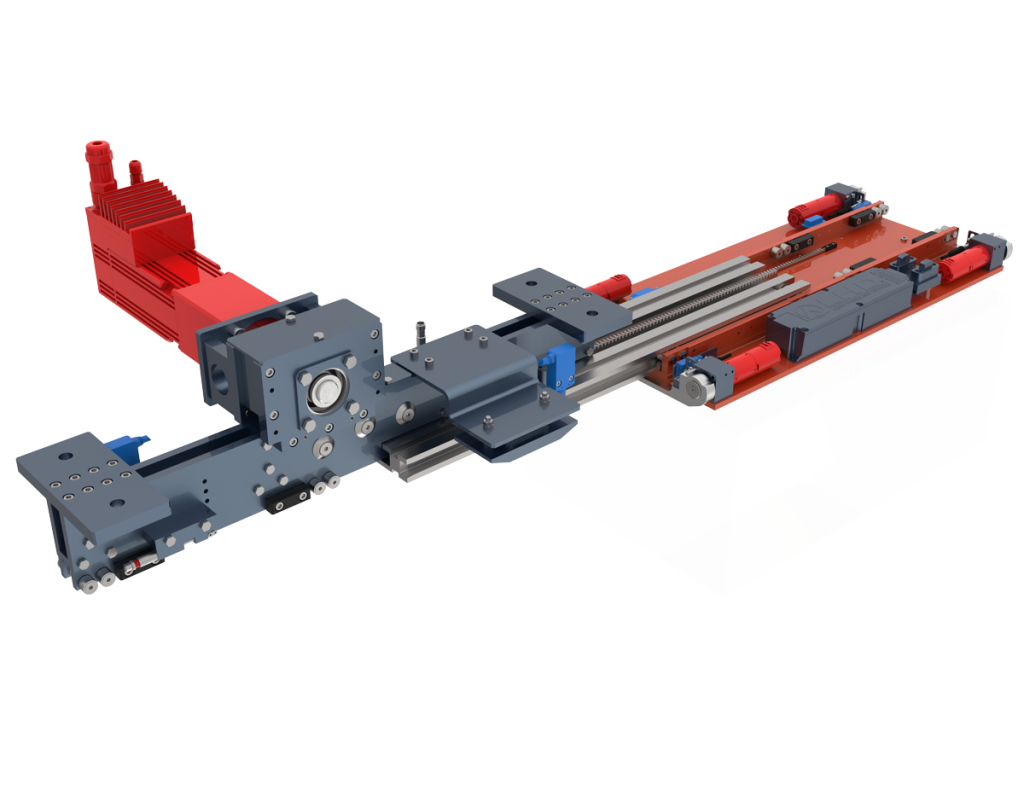

ARACHNE Z4 – Load up to 50 kg (110 Lb) The ARACHNE Z4 works with telescopic arm reversed. Can carry out the handling of one plastic box (or carton) about as big as 600×400 mm with 50 Kg weight, in simple depth. In the picking phase, one telescopic arm reaches the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Thanks to its particularly light structure, the ARACHNE can attain remarkable work speeds. In comparison with similar equipment on market, the ARACHNE is certainly more performing, slender, and per se simpler. This makes it easy as for maintenance and certainly competitive.


Carton Loader – Load up to 50 kg (110 Lb)

Standard length: from 850 mm to 1000 mm
Maximum stroke: from 1450 mm to 2000 mm
Maximum payload: 50 kg (110 Lb)
Acceleration without load: up to 1 [m/s2]
Speed without load: up to 45 [m/min]
