SKU AT130 Category


Out of Stock

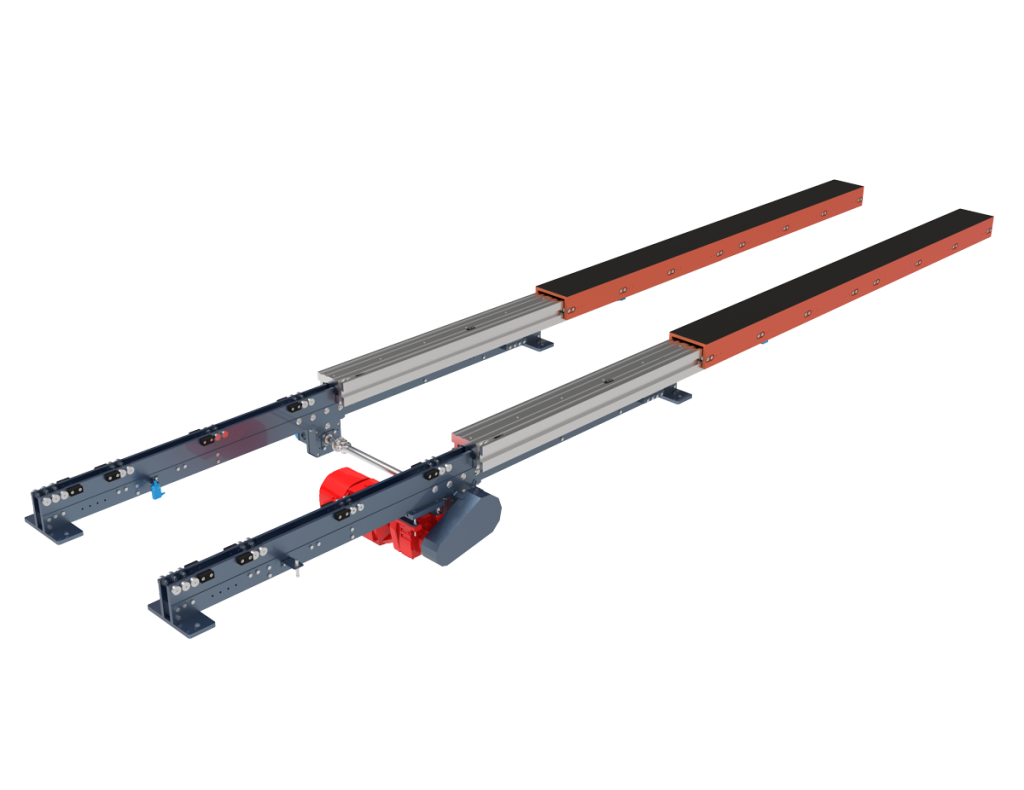

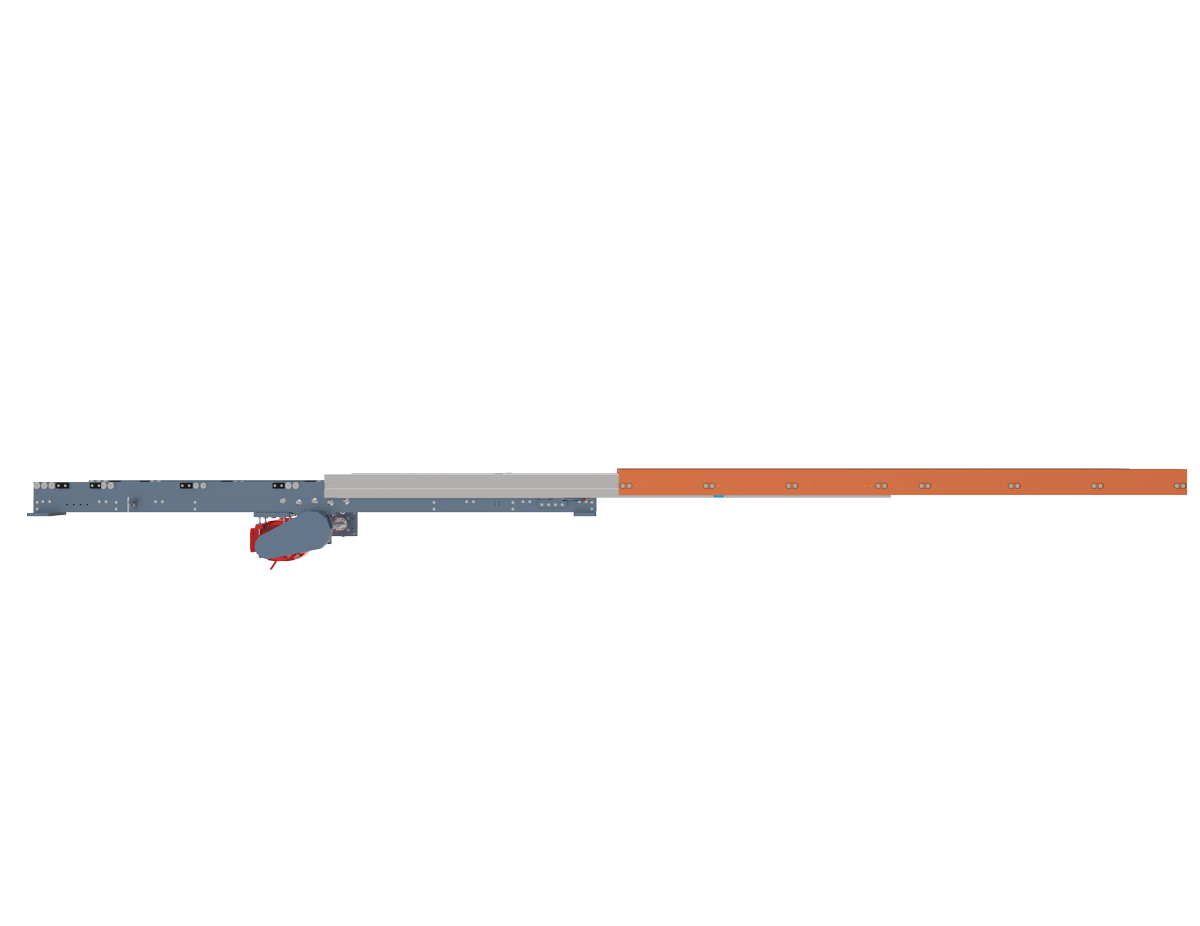

ATHENA 130 – Load up to 2500 Kg (5515 Lb) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. Being fit for special applications, the ATHENA 130 allows handling heavy loads with long strokes and small bending. ATHENA 130  has the possibility to be installed upside down, for special purposes. Not suitable for high operating speeds and accelerations, it works at its best in all those sectors where toughness, repeatability and fatigue stress are required. As for the transmission, it’s available both with racks and pinions and with chains. The ATHENA series can be produced also in notably bigger sizes, nevertheless, it’s part of the custom-built production and its feasibility has to be established along with LHD S.p.A.’s technical staff. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.



Single depth – Load up to 2500 Kg (5515 Lb)

Standard length: from 1500 mm to 2200 mm
Stroke: from 1600 to 2300 mm
Load: up to 2500 Kg (5515 Lb)
Cross Section:  W x H = 200 x 130 mm
Speed without load: 45 [m/min]
Acceleration without load: 1 [m/s2]

2 (two versions): gear and rack version and chain version


고정 본체 길이(ㅡmm)

, , , , , ,

하중 (KG)

부하 시 최대 굽힘(mm)

, , , , , ,


, , , , , ,

상부 슬라이드 길이(mm)

, , , , , ,
