SKU AT160 Category


In Stock

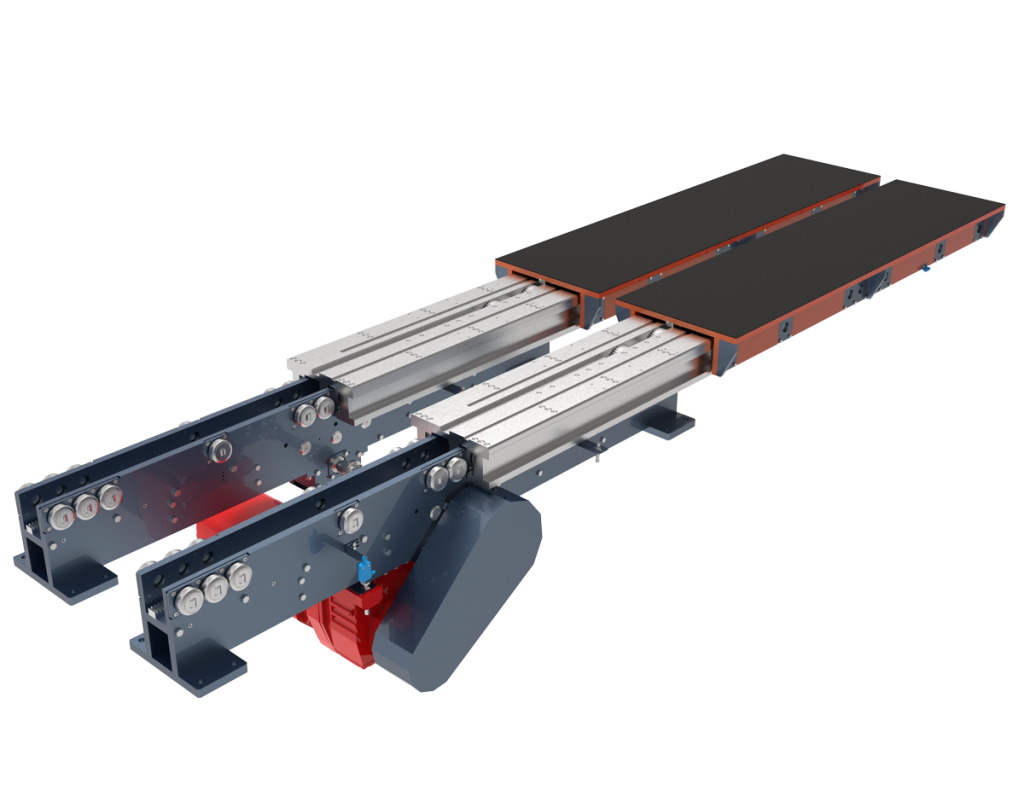

Load up to 3.000 Kg (6600 Lb) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. It’s a very strong, though and performing telescopic fork. It’s expressly designed by LHD to fill a gap in the choice of telescopic forks in order to fulfill an increasing requirement by the current handling industry. Thanks to its though structure, the ATHENA 160 has a very small bending, even when carrying heavy loads. Mostly suitable for handling coils within paper and steel industries, it’s also particularly suitable for handling car bodies and chassis within the automotive sector. The ATHENA 160 is an excellent intermediate solution to have powerful, safe and competitive equipment, repeatability being its strong point. The ATHENA series can be produced also in notably bigger sizes, nevertheless, it’s part of the custom-built production and its feasibility has to be established along with LHD S.p.A.’s technical staff. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.



Single depth – Load up to 3000 Kg (6614 Lb)

Standard length: from 1300 mm to 2900 mm
Stroke: from 1400 to 3000 mm
Load: up to 3.000 kg (6614 Lb)
Cross Section:  W x H = 370 x 160 mm
Speed without load: 30 [m/min]
Acceleration without load: 0,5 [m/s2]


고정 본체 길이(ㅡmm)

, , , , , ,

하중 (KG)

부하 시 최대 굽힘(mm)

, , , , , ,


, , , , , ,

상부 슬라이드 길이(mm)

, , , , , ,
