CERBERUS X2 for COILS

당사의 표준이 귀사의 요구사항에 맞지 않나요?
저희에게 연락하여 솔루션을 설계하세요!

SKU CX2 Category

CERBERUS X2 for COILS

Out of Stock

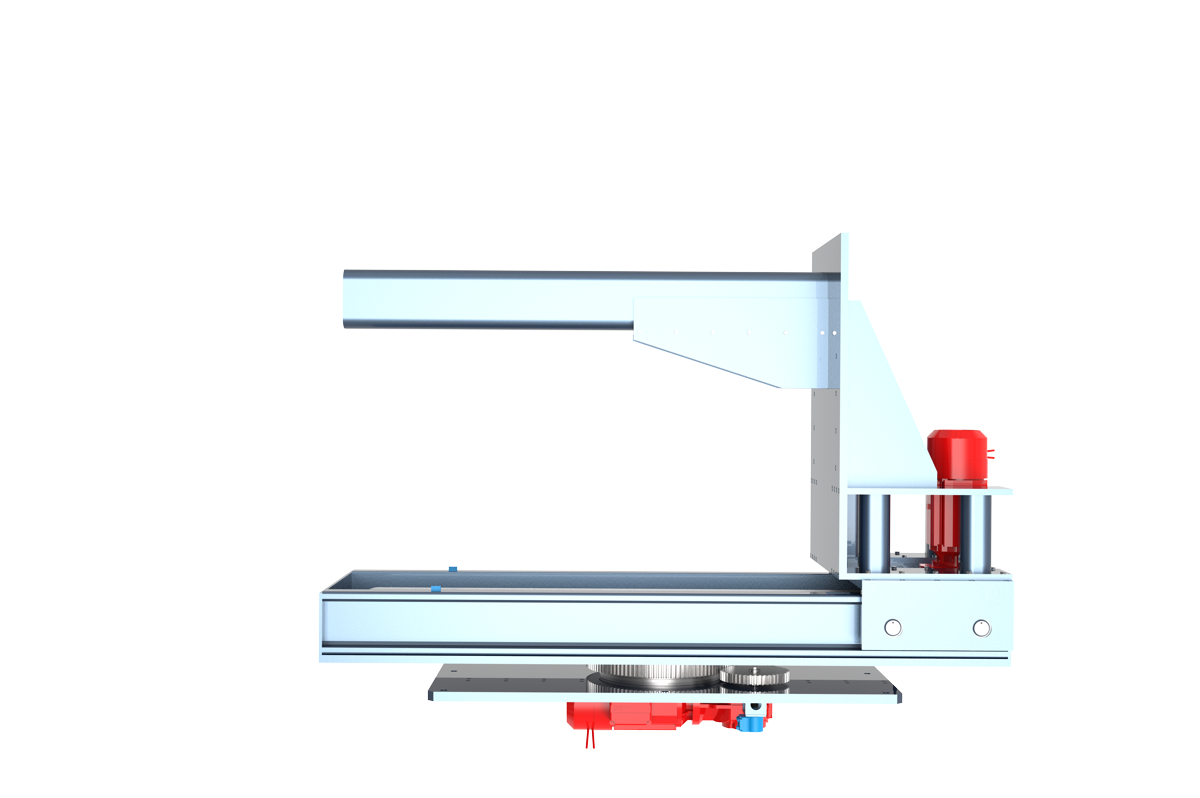

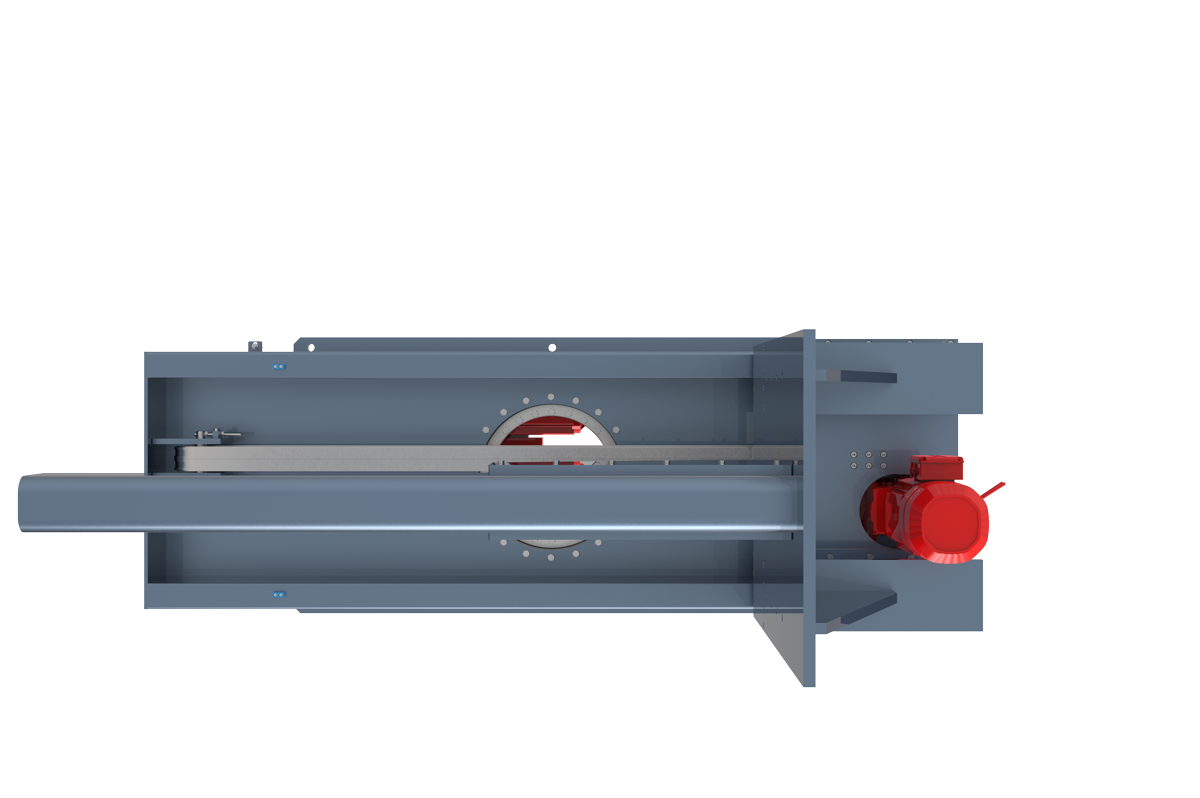

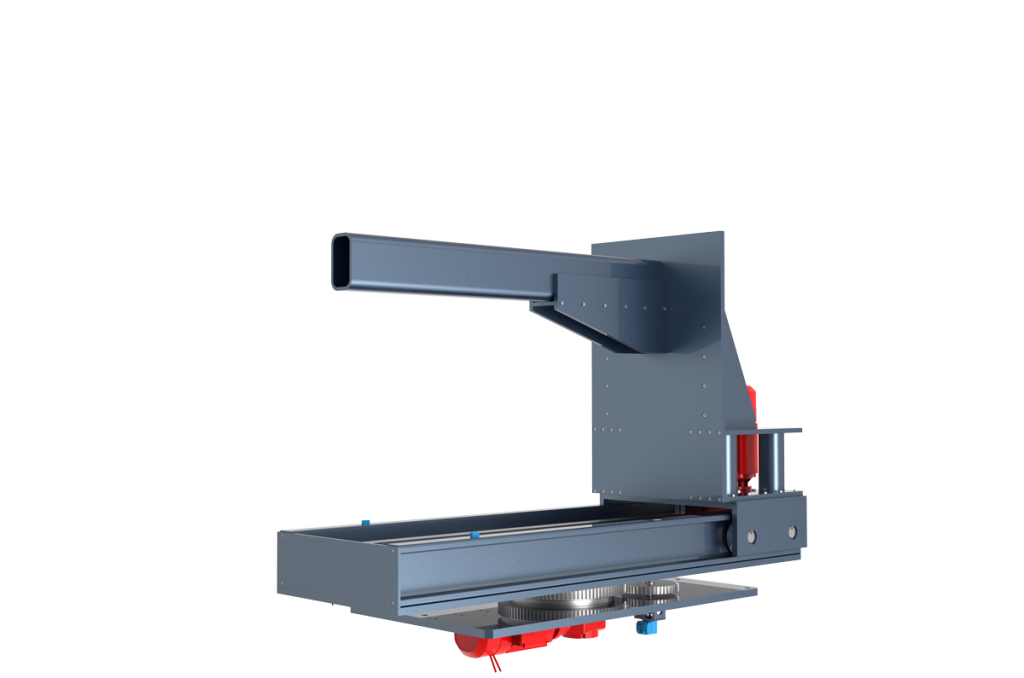

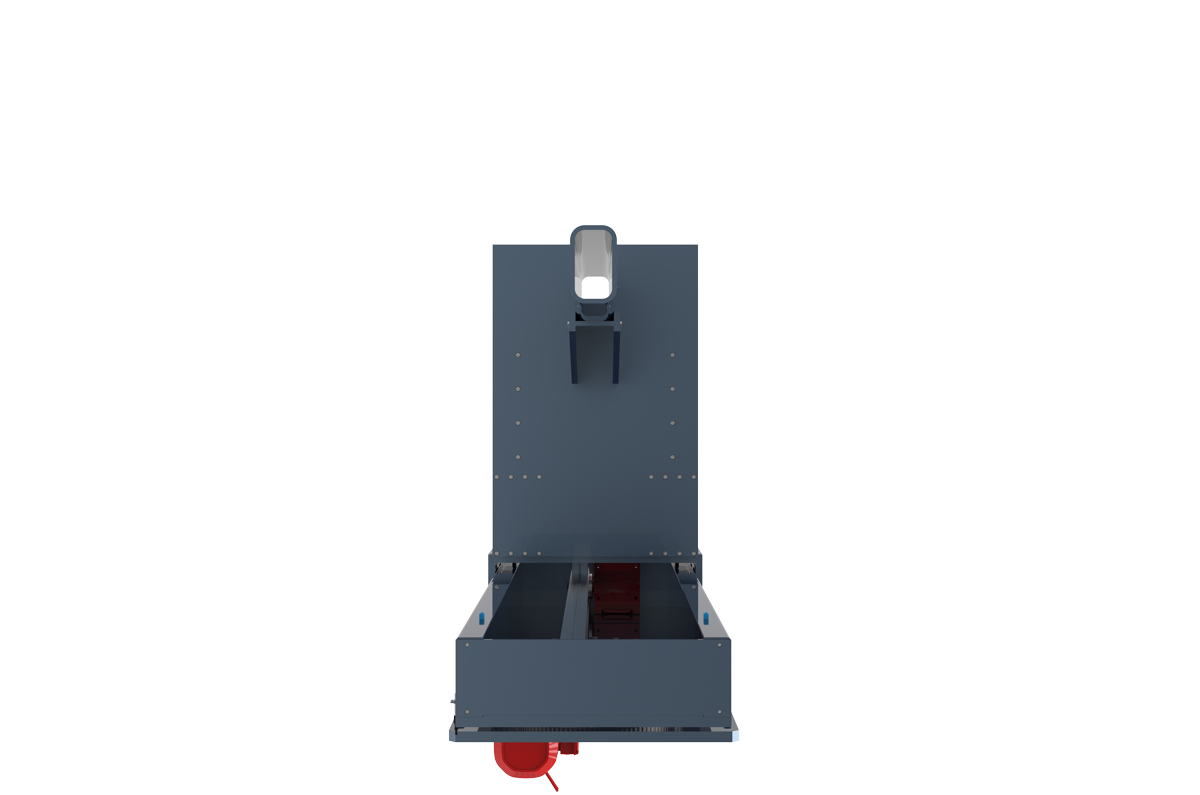

CERBERUS X2 – Load up to 1500Kg (3307 Lb). The CERBERUS for coils with central pipe allows handling coils and a carrying capacity up to 1500 Kg (3307 Lb). The rotation and translation speed can be as fast as 30 m/min. Thanks to this system, the coils can be set down and picked up, even rotated by 180° compared to the normal position in warehouses. The equipment is operated through a pinions and racks transmission. The whole structure is supported by a system of prismatic rails, their size depending on the weight of the equipment is designed for Pallet Handling.

Clear

Description

CERBERUS for COILS – CERBERUS X2
Load up to 1500Kg (3307 Lb)

Standard length: from 1700 mm to 2000 mm
Stroke: from 1350 to 1650 mm
Load: up to 1500 kg  (3307 Lb)
Distance between forks:  from 370 mm to 500 mm
Speed without load: 25 m/min
Acceleration without load: 1 m/s2

Specification

고정 본체 길이(ㅡmm)

,

하중 (KG)

스트로크(mm)

,

시스템 길이(mm)

,
