CERBERUS X4 STINGER

당사의 표준이 귀사의 요구사항에 맞지 않나요?
저희에게 연락하여 솔루션을 설계하세요!

SKU CX4 Category

CERBERUS X4 STINGER

Out of Stock

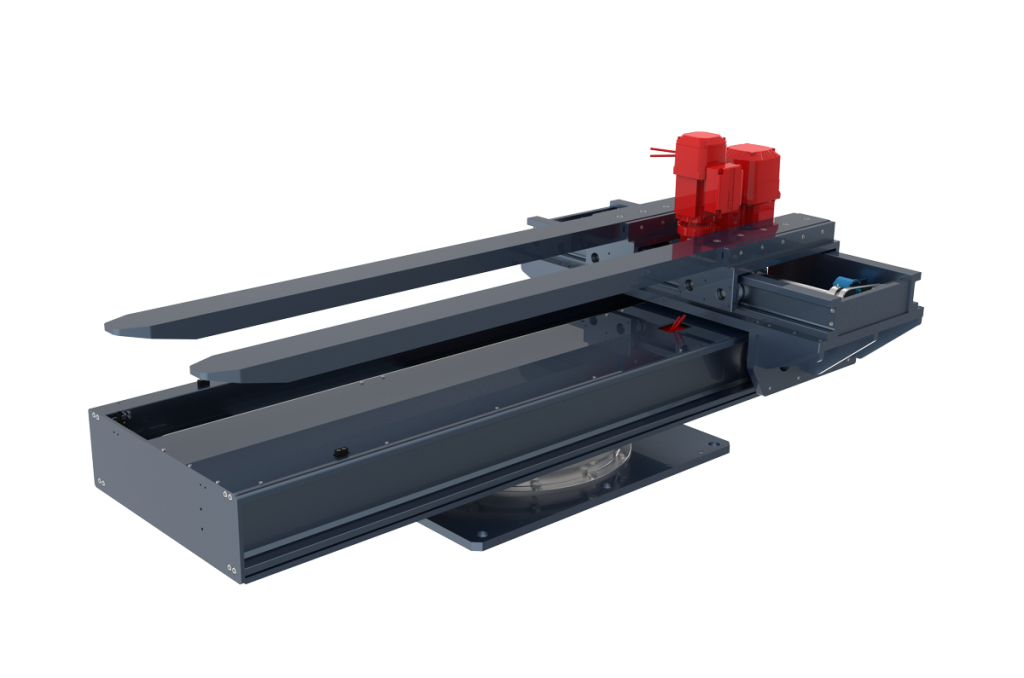

CERBERUS X4 – Load up to 2150 Kg (4740 Lb) Cerberus X4 with the central pipe is a similar solution as CERBERUS for COILS and a carrying capacity up to 2150 Kg. The rotation and translation speed can be as fast as 30 m/min. Thanks to this system, the load can be set down and picked up, even rotated by 360° compared to the normal position in warehouses.

Clear

Description

CERBERUS STINGER X4
Load up to 2150 Kg (4740 Lb)

Standard length: 1600 mm to 2250 mm
Stroke: from 1100 to 1800 mm
Load: up to 2150 kg (4740 Lb)
Speed without load: 25 m/min
Acceleration without load: 1 m/s2
Rotation: 360°

Specification

고정 본체 길이(ㅡmm)

,

하중 (KG)

스트로크(mm)

,

시스템 길이(mm)

,
