SKU CY140 Category


Out of Stock

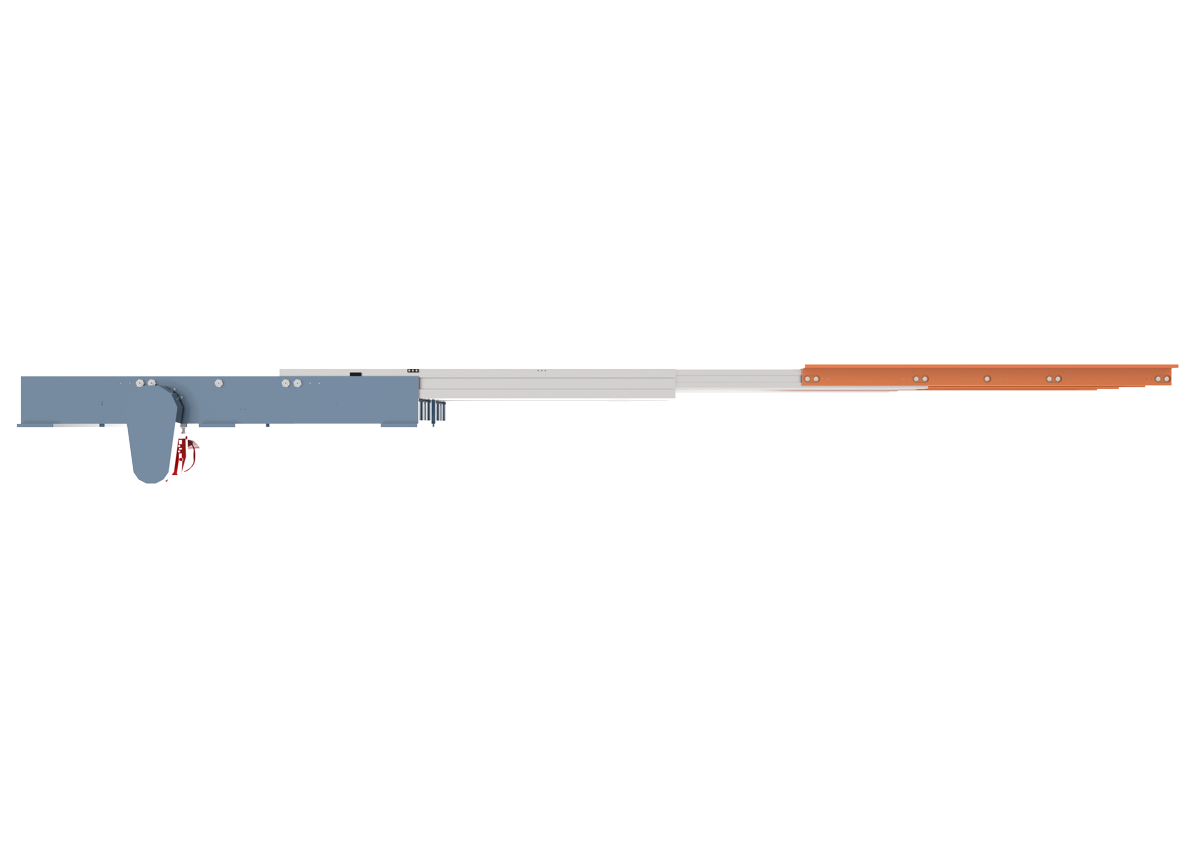

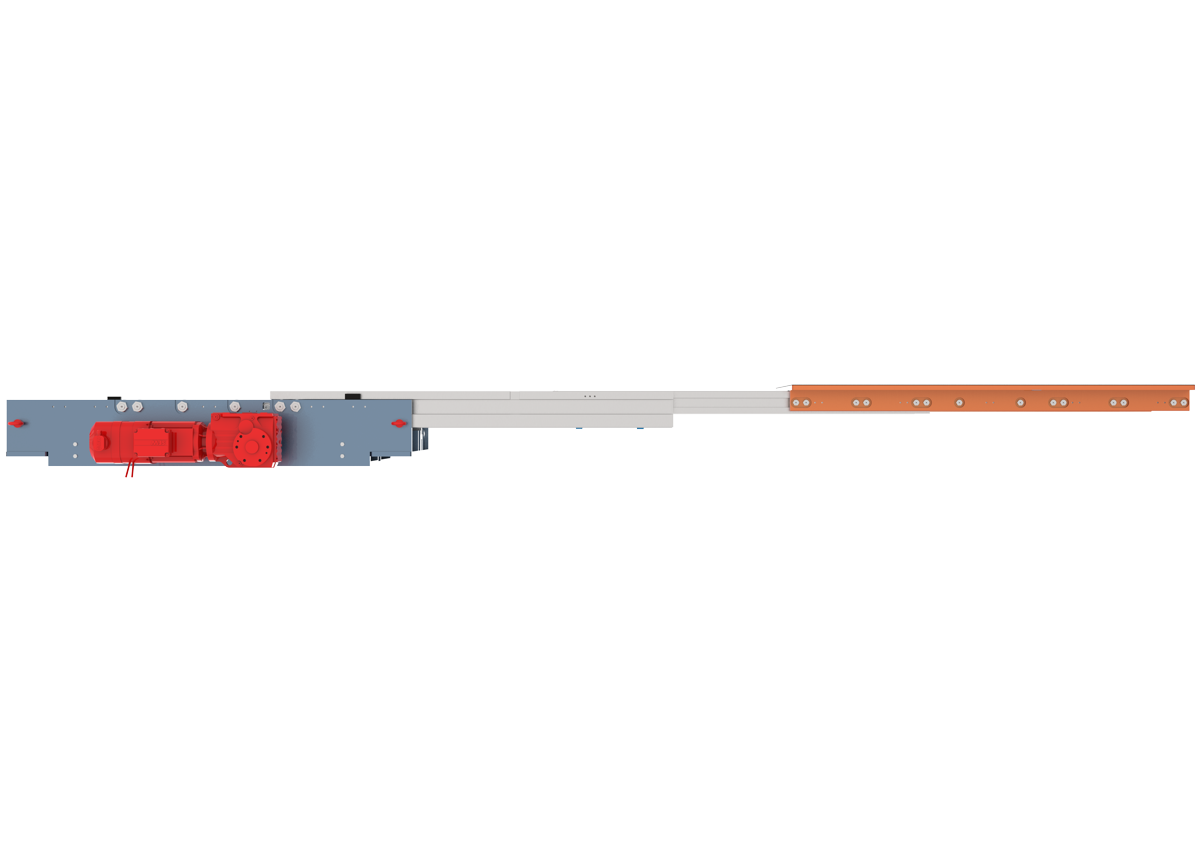

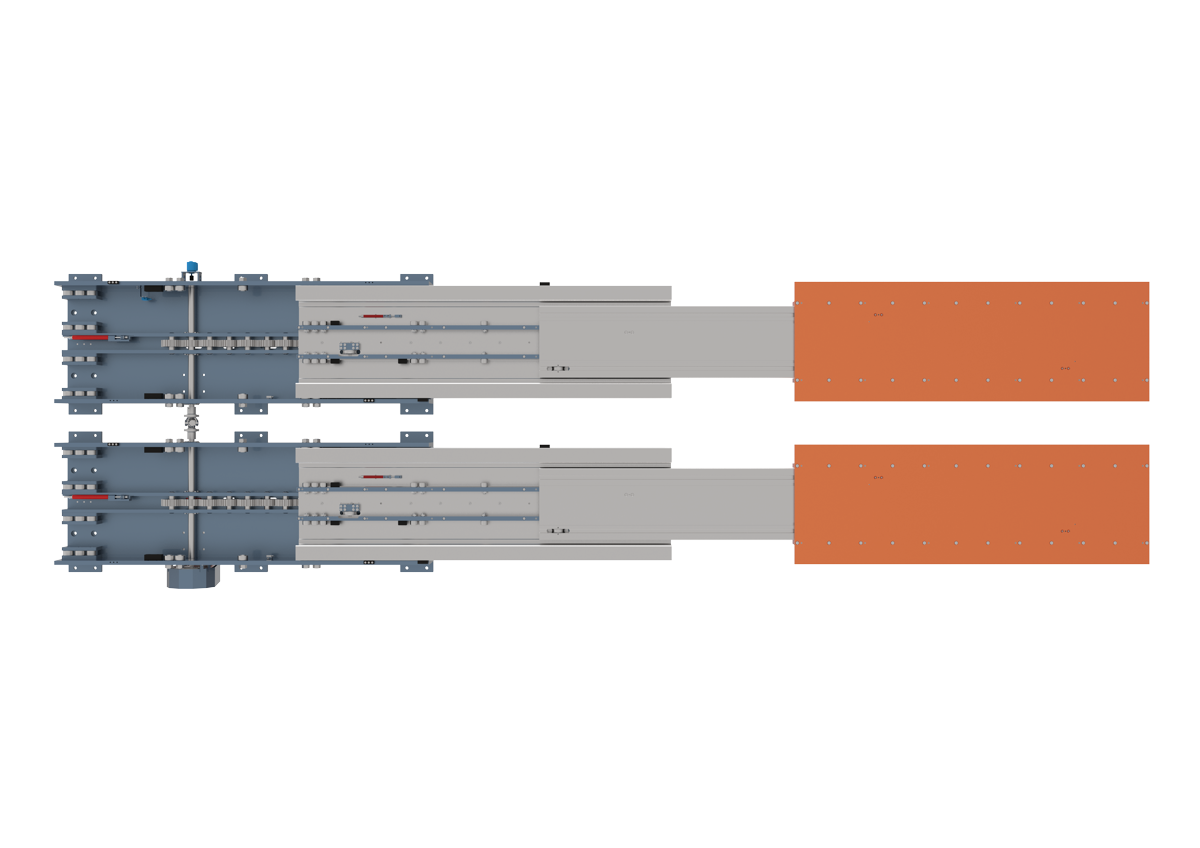

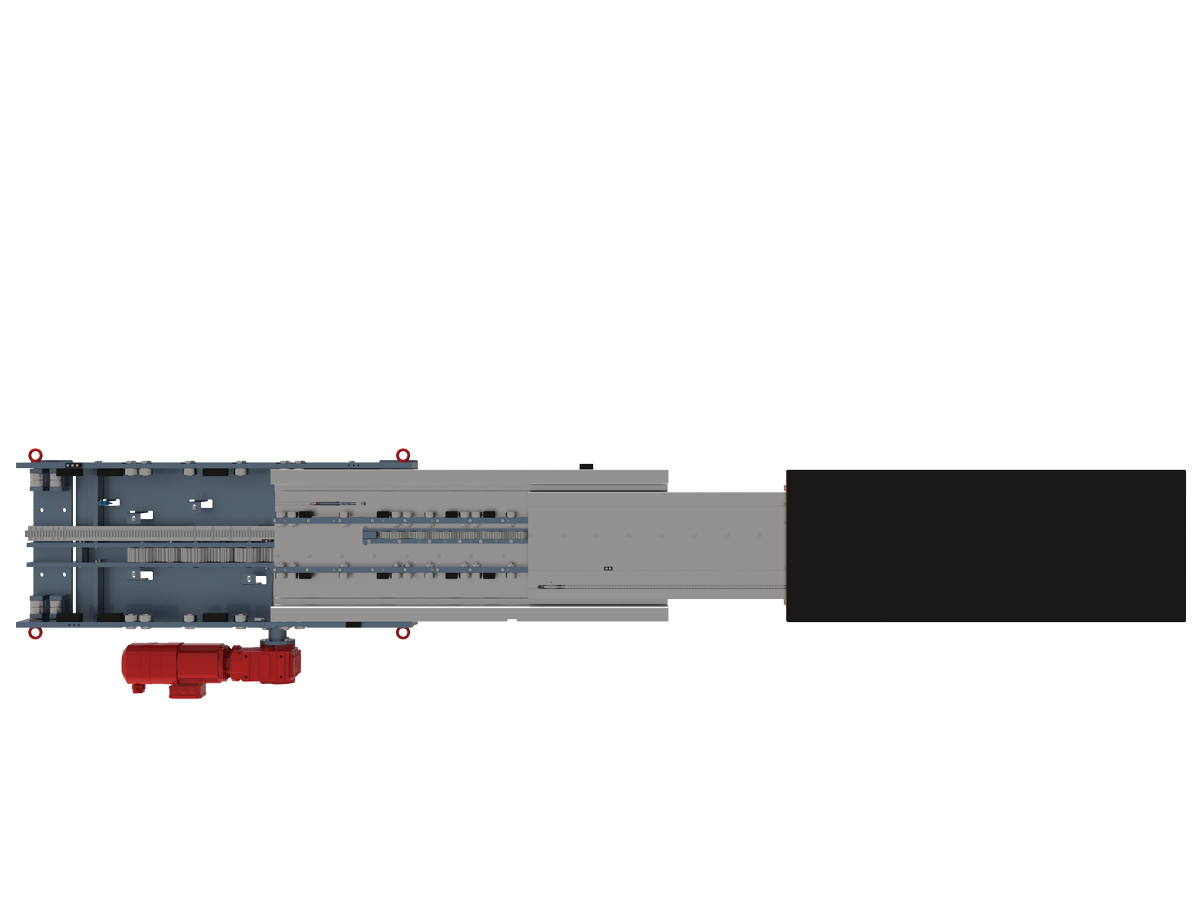

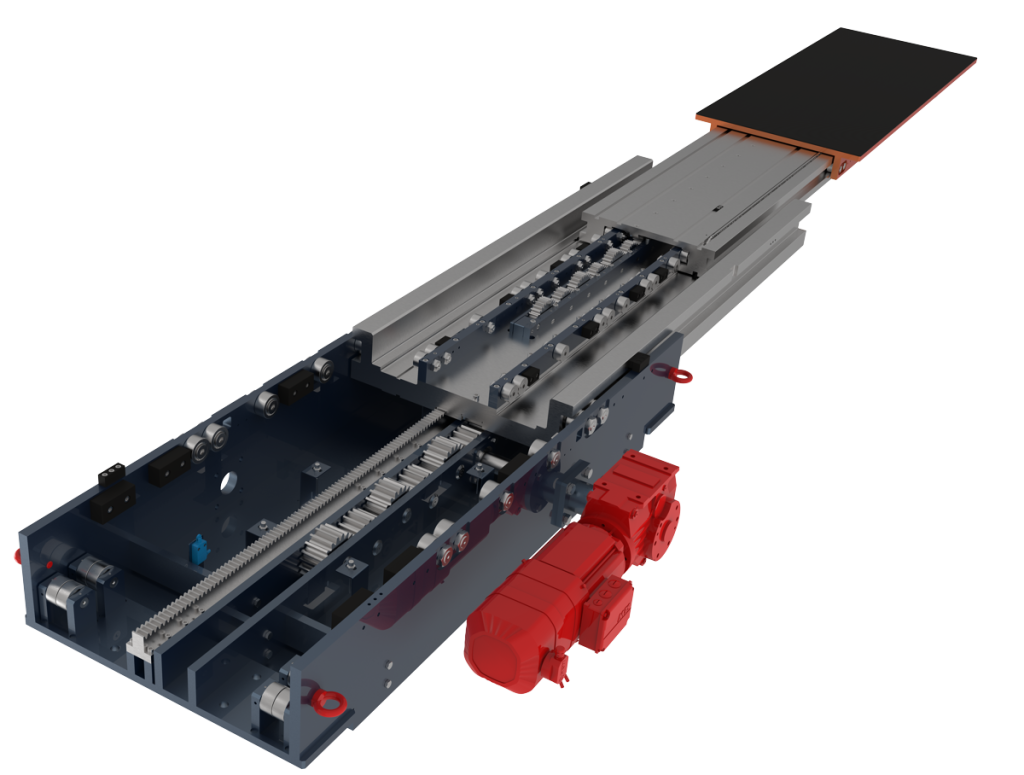

CYCLOPS – Load up to 2000 Kg (4410 Lb) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. The strong points of this monofork are its high moment of inertia and its relatively small size. With only 140 mm thickness, it can pick up a 2000 Kg load in double depth alone, despite the small bending and the high work pace it can reach. It`s very useful in all those situations where there`s no room for a typical pair of forks and where the load to handle is else than the normal euro pallet. A benefit deriving from the single-engine arrangement is the simple and conventional operation. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.



Double Depth – Load up to 2000 Kg (4410Lb)

Standard length: from 1300 mm to 2000 mm
Stroke: from 2650 to 3900 mm
Load: up to 2000 kg (4400 Lb)
Cross Section:  W x H = 600 x 140 mm
Speed without load: 30 m/min
Acceleration without load: 0,5 m/s2


고정 본체 길이(ㅡmm)

, , ,

하중 (KG)

, ,

부하 시 최대 굽힘(mm)

, , ,


, ,

상부 슬라이드 길이(mm)
