MEDUSA

당사의 표준이 귀사의 요구사항에 맞지 않나요?
저희에게 연락하여 솔루션을 설계하세요!

SKU MD Category

MEDUSA

Out of Stock

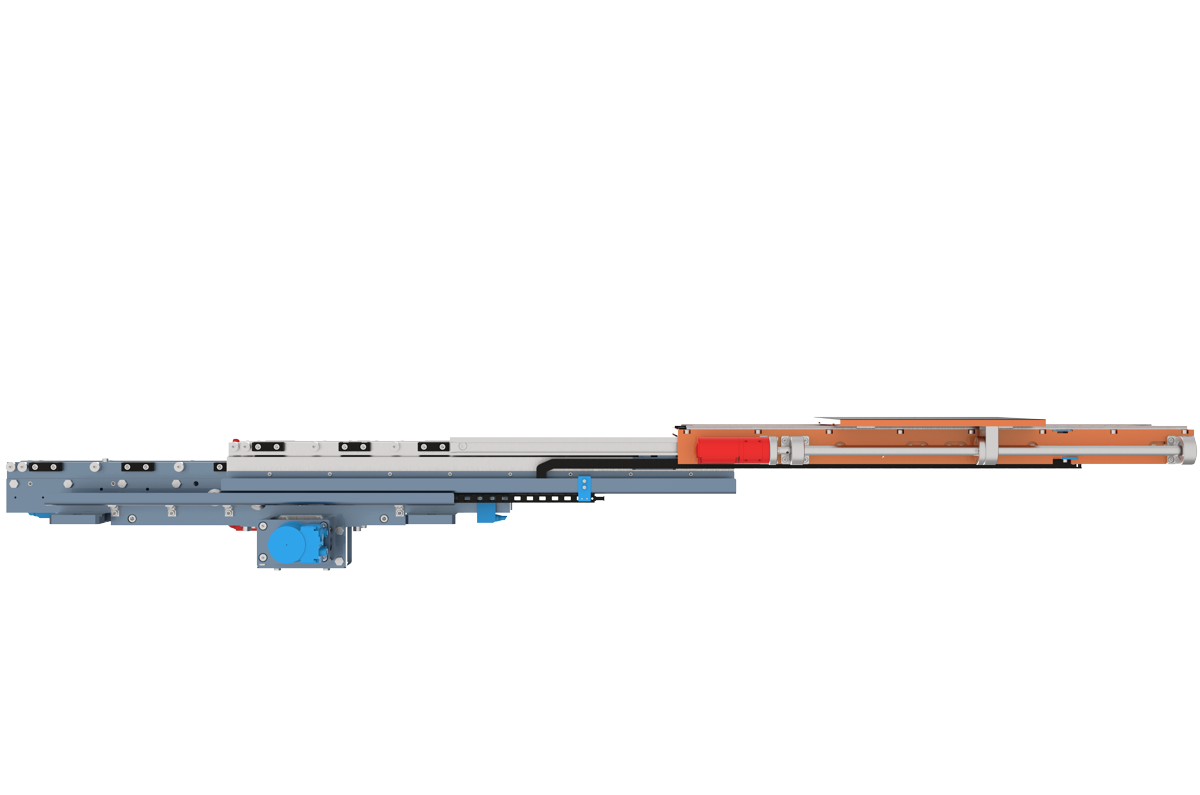

MEDUSA – Load up to 100 Kg (220 Lb) The MEDUSA is essentially a double-depth telescopic fork (usually in a monofork arrangement) with a further moving plate that can shift along the upper slide when the forks are in centre position, allowing to change the position of a load unit that sits on the upper slide according to customer needs, with no need of side belts.

Clear

Description

MEDUSA
Unit transfer solutions – Load up to 100 Kg (220 Lb)

Standard length: from 650 mm to 1200 mm
Stroke: from 1300 mm to 2400 mm
Maximum payload: 100 kg (220 Lb)
Acceleration without load: up to 1 [m/s2]
Speed without load: up to 45 [m/min]

Specification

고정 본체 길이(ㅡmm)

, , , , , ,

하중 (KG)

, , , ,

부하 시 최대 굽힘(mm)

, , , , , ,

스트로크(mm)

, , , , , ,

상부 슬라이드 길이(mm)

, , , , , ,
