LHD 产品

APOLLO - Load up to 1500 Kg (3307 Lb) This is a compound system (telescopic forks + conveyor), designed to implement the handling functionality. With closed forks, the conveyor lifts, allowing to handle the pallet separately The benefits of this peculiar kind of equipment are: - Reduction of the cycles times within the automated warehouses, since it`s possible to set down the load in the unloading bay by means of the conveyor without using forks; - Improving the positioning of...
ARACHNE X10 - Load up to 100 Kg (220Lb) ARACHNE X10 is a carton loader of the latest generation. Like every ARACHNE product from LHD SpA, ARACHNE X10 was developed especially for handling carton or plastic boxes. This newly designed solution can handle up to 4 boxes by means of small pivoting fingers, with a total load-carrying capacity of up to 100 kg (max. 25 Kg per box). Unlike, other devices from our Arachne series, the main feature of ARACHNE...
ARACHNE X4 - Load up to 50 Kg (110 Lb) The ARACHNE X4 is an interesting latest generation equipment, being lately introduced. The ARACHNE can carry out the handling of one plastic box (or carton) from 200x300 to 600x400 mm with 50 Kg weight, in simple depth. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Available with: single belt, sheet flat, rolls conveyor,...
ARACHNE X6 - Load up to 100 Kg (220 Lb) The ARACHNE X6 is LHD patented solution and doesn’t need a cable carrier to drive fingers. For this reason, its dimension is the smallest on the market, just 180x50 mm. Like ARACHNE X6 can carry out the handling of two plastic boxes (or carton) about as big as 600x400 mm with 100 Kg weight, in simple or in double depth, or 2 of these boxes in single depth. Onboard is...
ARACHNE X8 - Load up to 120 Kg (265 Lb) A three boxes loader patented solution, 40+40+40 Kg. Can carry out three plastic boxes (or carton) from 200x300 to 600x400 mm with 40 Kg weight each one. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Available optional: single belt, double belts, triple belts, sheet flat, single rolls conveyor, width adjustment, automatic bridge to...
ARACHNE XX4 - Load up to 50 kg (110 Lb) The ARACHNE XX4 is a patented double-depth solution in rack, one box on board. The ARACHNE can carry out the handling of one plastic box (or carton) about as big as 600x400 mm with 50 Kg weight. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. The single belt system on board the XX4...
ARACHNE XX6 - Load up to 60 kg (133 Lb) The ARACHNE XX6 is a patented double-depth solution in rack, two boxes on board. The ARACHNE can carry out the handling of 1+1 plastic box (or carton) about as big as 600x400 mm with 30 Kg weight. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. The single belt system on board the XX6...
ARACHNE XXX4 - Load up to 50 kg (110 Lb) The ARACHNE XX4 is a patented triple-depth solution in rack, one box on board. The ARACHNE can carry out the handling of one plastic box (or carton) about as big as 600x400 mm with 50 Kg weight. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. The single belt system on board the XX4...

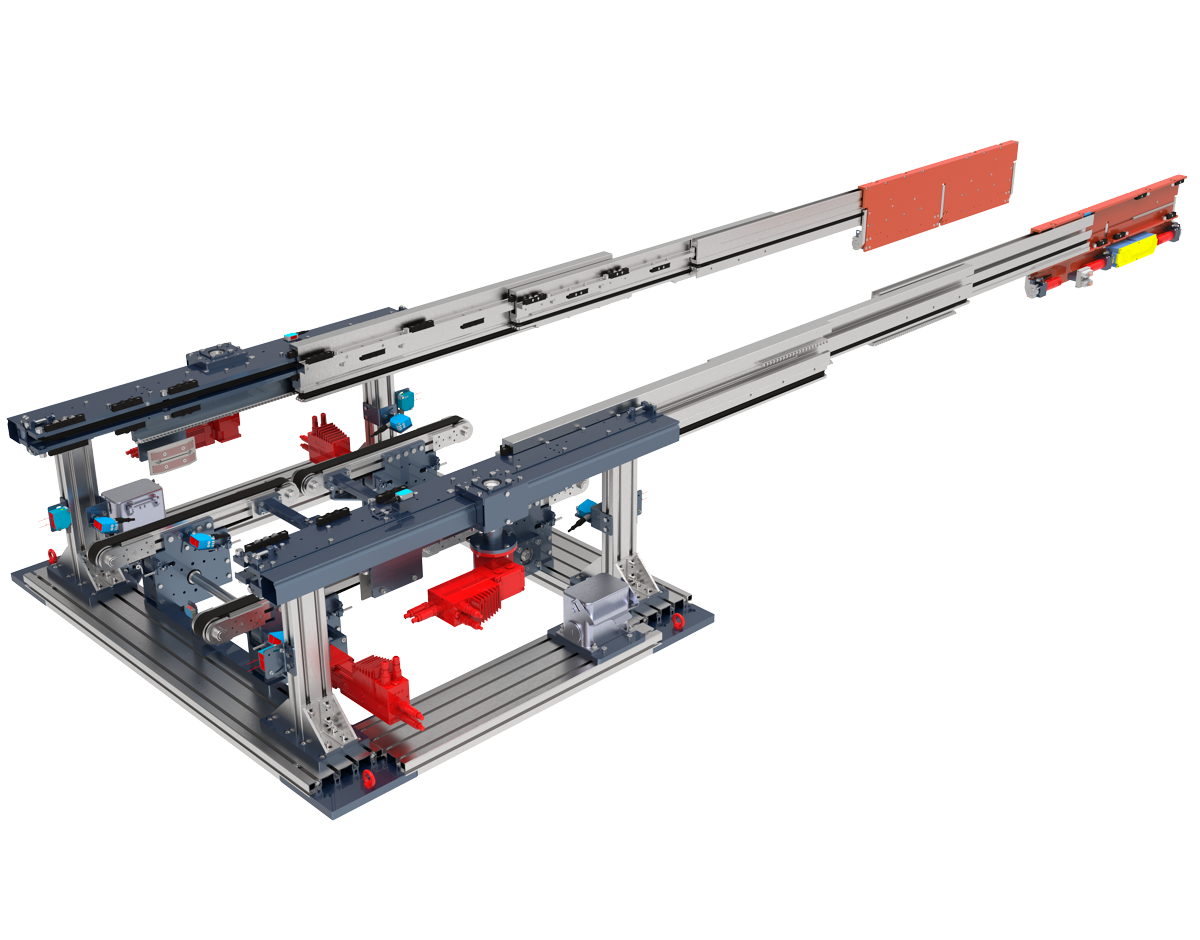

ARACHNE XXX6 - Load up to 50 kg (110 Lb) The ARACHNE XXX6 is a patented double-depth solution in rack, two boxes on board. The ARACHNE can carry out the handling of 1+1 plastic box (or carton) about as big as 600x400 mm with 30 Kg weight. In the picking phase, two telescopic arms reach the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. The single belt system on board the XX6...
ARACHNE Z4 - Load up to 50 kg (110 Lb) The ARACHNE Z4 works with telescopic arm reversed. Can carry out the handling of one plastic box (or carton) about as big as 600x400 mm with 50 Kg weight, in simple depth. In the picking phase, one telescopic arm reaches the load on the shelf and, by means of small pivoting fingers, drag it onboard the shuttle. Thanks to its particularly light structure, the ARACHNE can attain remarkable work speeds....
