小型装载机伸缩叉

在货物存储等行业,货物以特殊容器或包装进入仓库,需要使用高性能的高速机器。存储系统可以是单深度或双深度的,每个系统都必须集成一个适合 “拣选 “的抓取元件(伸缩叉)。伸缩叉结构紧凑、用途广泛,是单深度/双深度存储/检索 Miniload 系统的完美搬运系统。
由于采用固定式机身和轻型铝制滑块,用于 Miniload 的伸缩叉可以达到很高的速度和加速度。

LHD 集团开发的伸缩叉的优势在于体积小、维护成本低。此类设备的技术解决方案和性能可根据多种应用进行定制,从塑料或金属容器到纸板箱,再到用于电子集成电路的半导体晶片(用于洁净室环境的伸缩叉)。

适用于 Miniload 的伸缩叉可在不同的组合系统(传送带、可变轴间系统或输送系统)中运行,单个伸缩叉的负载能力可达 150 公斤。

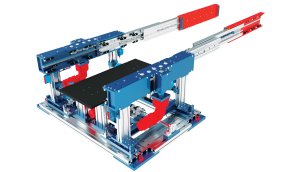

  • Load up to 1500 Kg (3307 Lb)
  • Length: from 1000 mm to 1700 mm
  • Std vertical Stroke: from 60 mm to 120 mm

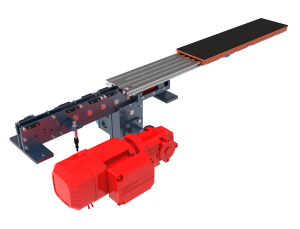

  • Load up to 15 Kg
  • Length: from 600 mm to 900 mm
  • Stroke: from 700 mm to 1000 mm

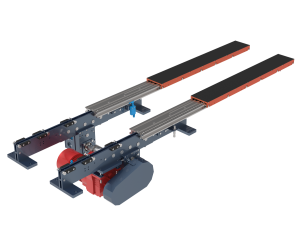

  • Load up to 100 Kg (220 Lb)
  • Length: from 650 mm to 1350 mm
  • Stroke: from 750 to 1450 mm

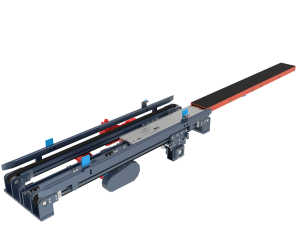

  • Load up to 100 Kg (220 Lb)
  • Length: from 650mm to 1250 mm
  • Stroke: from 750 to 1350
  • Load up to 100 Kg (220 Lb)
  • Length: from 650 mm to 1450 mm
  • Stroke: from 750 to 1550 mm
  • Load up to 200 Kg (441 Lb)
  • Length: from 650 mm to 1450 mm
  • Stroke: from 750 mm to 1550 mm
  • Load up to 50 Kg
  • Length: from 600 mm to 900 mm
  • Stroke: from 700 mm to 1000 mm
  • Load up to 1300 kg (2867 Lb)
  • Length: up to 2500 mm
  • Max Stroke: 1450 mm
  • Load up to 100 Kg (220 Lb)
  • Length: from 600 mm to 1200 mm
  • Stroke: from 700 mm to 1300 mm
  • Load up to 100 Kg (220 Lb)
  • Length: from 600 to 1200 mm
  • Stroke: 1100 to 2200 mm
  • Load up to 100 Kg (220 Lb)
  • Length: from 785 mm to 1385 mm
  • Load Stroke : from 865 mm to 1465 mm
  • Load up to 50 Kg (110 Lb)
  • Length: from 420 mm to 1250 mm
  • Load up to 100 Kg(220 Lb)
  • Length: from 650 mm to 1250 mm
  • Load up to 50 kg (110 Lb)
  • Length: from 600 to 800 mm
  • Stroke: from 950 to 1550 mm
