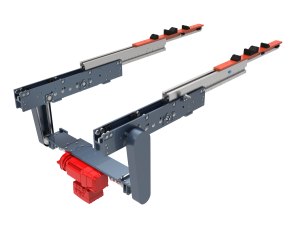

用于 AGV/ LGV /RGV 的伸缩叉

自动导引车(AGV/ LGV/RGV)用于将装载的物料运送到叉车、传送带或其他推车运输工具无法到达的地方。它们通常用于需要运输大量货物,但几乎不需要人类决策技能的环境中。

LHD 集团的 AGV /LGV/ RGV 解决方案

凭借 40 多年的丰富经验,LHD 集团掌握了特定领域的知识,可帮助您取得可衡量的成果。
无论您是从头开始设计新的 AGV/ LGV/ RGV,还是改造您的系统以提供新一代的质量和生产率,LHD 集团都能帮助您实现并超越您的目标!
请联系我们,看看我们的伸缩叉能为您的 AGV 和您的业务带来什么!

  • Load up to 5000 Kg (11025 Lb)
  • Std Vertical Stroke: from 60 to 150 mm
  • Lifting Time: 10s
  • Load up to 800 Kg (1765 Lb)
  • Length: from 1000 mm to 2000 mm
  • Stroke: from 1100 to 2100 mm
  • Load up to 1.600 Kg (3.530 Lb)
  • Length: from 1000 mm to 1900 mm
  • Stroke: from 1100 to 2000 mm
  • Load up to 15 Kg
  • Length: from 600 mm to 900 mm
  • Stroke: from 700 mm to 1000 mm
  • Load up to 100 Kg (220 Lb)
  • Length: from 650 mm to 1350 mm
  • Stroke: from 750 to 1450 mm
  • Load up to 100 Kg (220 Lb)
  • Length: from 650mm to 1250 mm
  • Stroke: from 750 to 1350
  • Load up to 100 Kg (220 Lb)
  • Length: from 650 mm to 1450 mm
  • Stroke: from 750 to 1550 mm
  • Load up to 200 Kg (441 Lb)
  • Length: from 650 mm to 1450 mm
  • Stroke: from 750 mm to 1550 mm
  • Load up to 50 Kg
  • Length: from 600 mm to 900 mm
  • Stroke: from 700 mm to 1000 mm
  • Load up to 1200 Kg (2650 Lb)
  • Length: from 1000 mm to 1800 mm
  • Stroke: from 1100 to 1900 mm
  • Load up to 1000 Kg (2205 Lb)
  • Length: from 1200 mm to 2000 mm
  • Stroke: from 1300 to 2100 mm
  • Load up to 600 Kg (1322 Lb)
  • Length: from 700 mm to 1800 mm
  • Stroke: from 800 to 1850 mm
  • Load up to 1350 Kg (2980 Lb)
  • Length: from 900 mm to 1800 mm
  • Stroke: from 1000 to 1900 mm
  • Load up to 1500 Kg (3310 Lb)
  • Length: from 1000 mm to 2000 mm
  • Stroke: from 1100 to 2100 mm
  • Load up to 1750 Kg (3860 Lb)
  • Length: from 1200 mm to 2000 mm
  • Stroke: from 1300 to 2100 mm
  • Load up to 1750 Kg (3860 Lb)
  • Length: from 1200 mm to 2000 mm
  • Stroke: from 1300 to 2100 mm
  • Load up to 2000 Kg (4410 Lb)
  • Length: from 900 mm to 2200 mm
  • Stroke: from 950 to 2300 mm
  • Single depth – Load up to 2500 Kg (5515 Lb)
  • Length: from 1100 mm to 2500 mm
  • Stroke: from 1200 to 2600 mm
  • Load up to 2500 Kg (5515 Lb)
  • Length: from 1500 mm to 2200 mm
  • Stroke: from 1600 to 2300 mm
  • Load up to 4000 Kg (8820 Lb)
  • Length: from 1100 mm to 2500 mm
  • Stroke: from 1200 to 2600 mm
  • Load up to 5000 Kg (11020 Lb)
  • Length: from 1300 mm to 2900 mm
  • Stroke: from 1400 to 3000 mm
  • Load up to 5000 Kg (11025 Lb)
  • Length: from 1500 mm to 3000 mm
  • Stroke: from 1600 to 3200 mm
  • Load up to 4000 Kg (8820 Lb)
  • Length: from 1300 mm to 2900 mm
  • Stroke: from 1400 to 3000 mm
  • Load up to 20000 Kg (44100 Lb)
  • Length: from 1300 mm to 2900 mm
  • Stroke: from 1400 to 3000 mm
  • Load up to 2000 Kg (4410 Lb)
  • Length: from 1000 mm to 1500 mm
  • Std Vertical Stroke: from 60 to 120 mm
  • Load up to 2000 Kg (4410 Lb)
  • Length: from 800 mm to 1300 mm
  • Stroke: from 60 to 180 mm
  • Load up to 1200 Kg (2646 Lb)
  • Length: from 1000 mm to 1500 mm
  • Mx tilting angle: +- 3%
