ARES 52

我们的标准不符合您的需求?
联系我们,设计您的解决方案!

SKU AR52 Category

ARES 52

In Stock

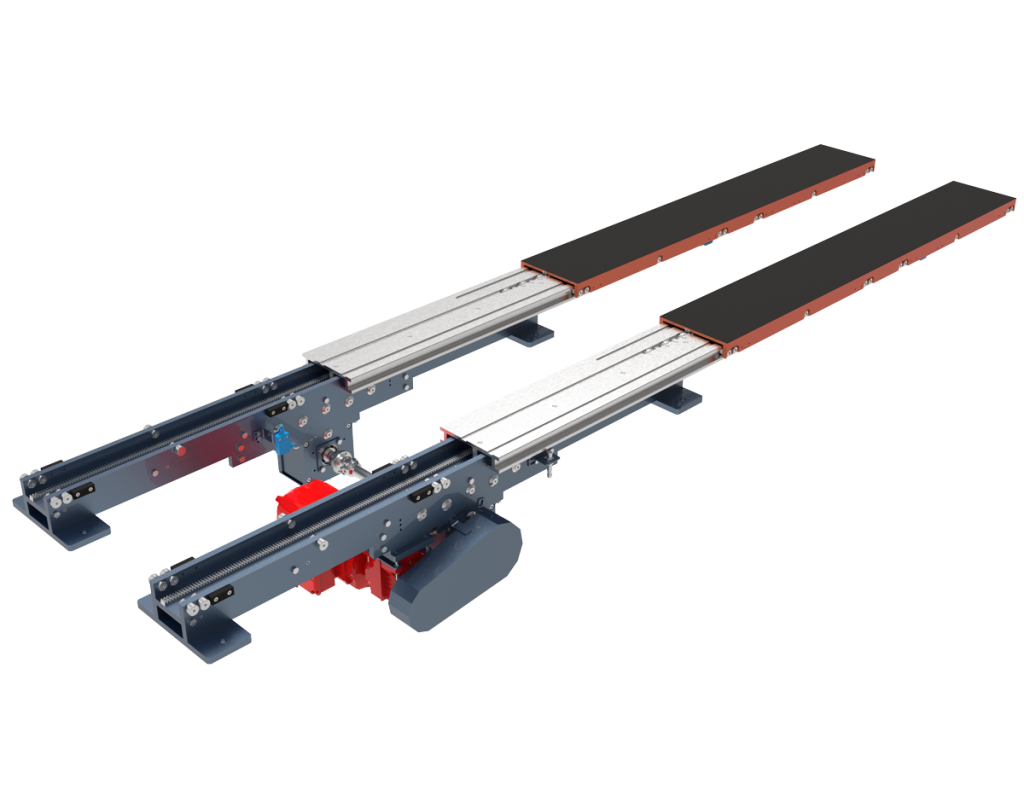

ARES 52 – Load up to 200 Kg (441 Lb) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. ARES 52 is a single depth fork designed for handling medium-light loads; it displays similar features to ARES 40, the only difference being the transmission system run by hardened gears and racks. This type of transmission allows ARES 52 to operate at an outstanding speed and acceleration, with extraordinary work paces. Its strong points are outstanding repeatability and precision. Due to high performances, it is recommended to take into account the stability of the load. ARES 52 is most suitable to be used as a single fork. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.

Clear

Description

ARES 52
Single Depth – Load up to 200 Kg (441 Lb)

Standard length: from 650 mm to 1450 mm
Load: up to 200kg (441 Lb)
Stroke: from 750 mm to 1550 mm
Cross Section: W x H = 220 x 52
Speed without load: 45 [m/min]
Acceleration without load: 1 [m/s2]

Specification

下叉长

, , , , , ,

负载

满载最大弯曲

, , , , , ,

行程

, , , , , ,

上叉长

, , , , , ,
