CRONOS 155

我们的标准不符合您的需求?
联系我们,设计您的解决方案!

SKU CR155 Category

CRONOS 155

Out of Stock

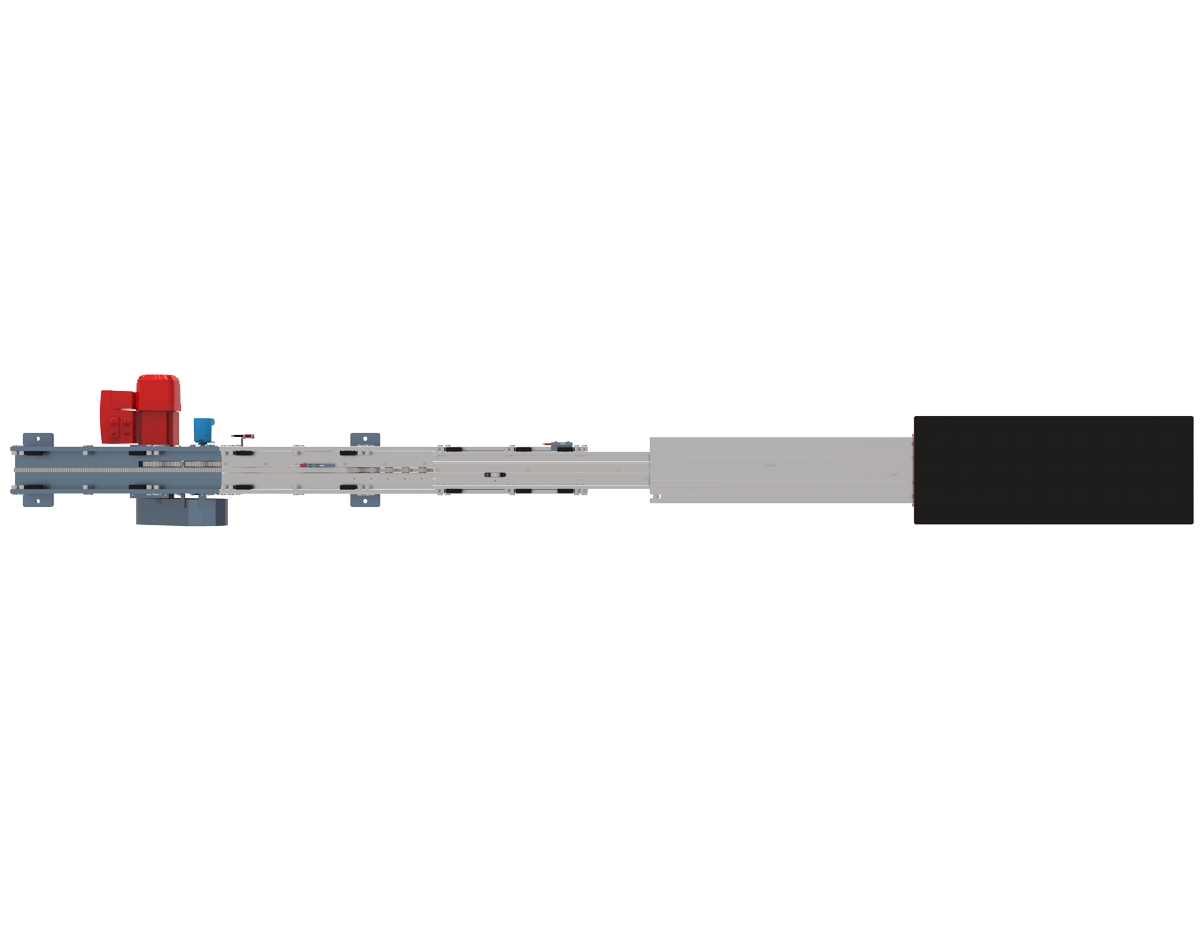

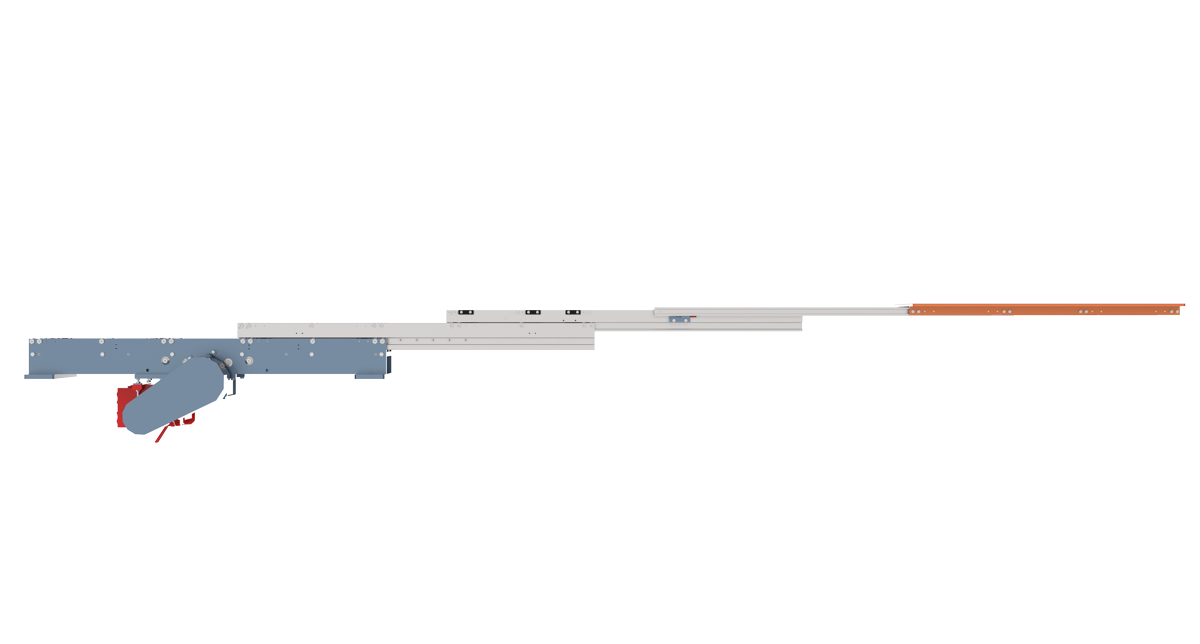

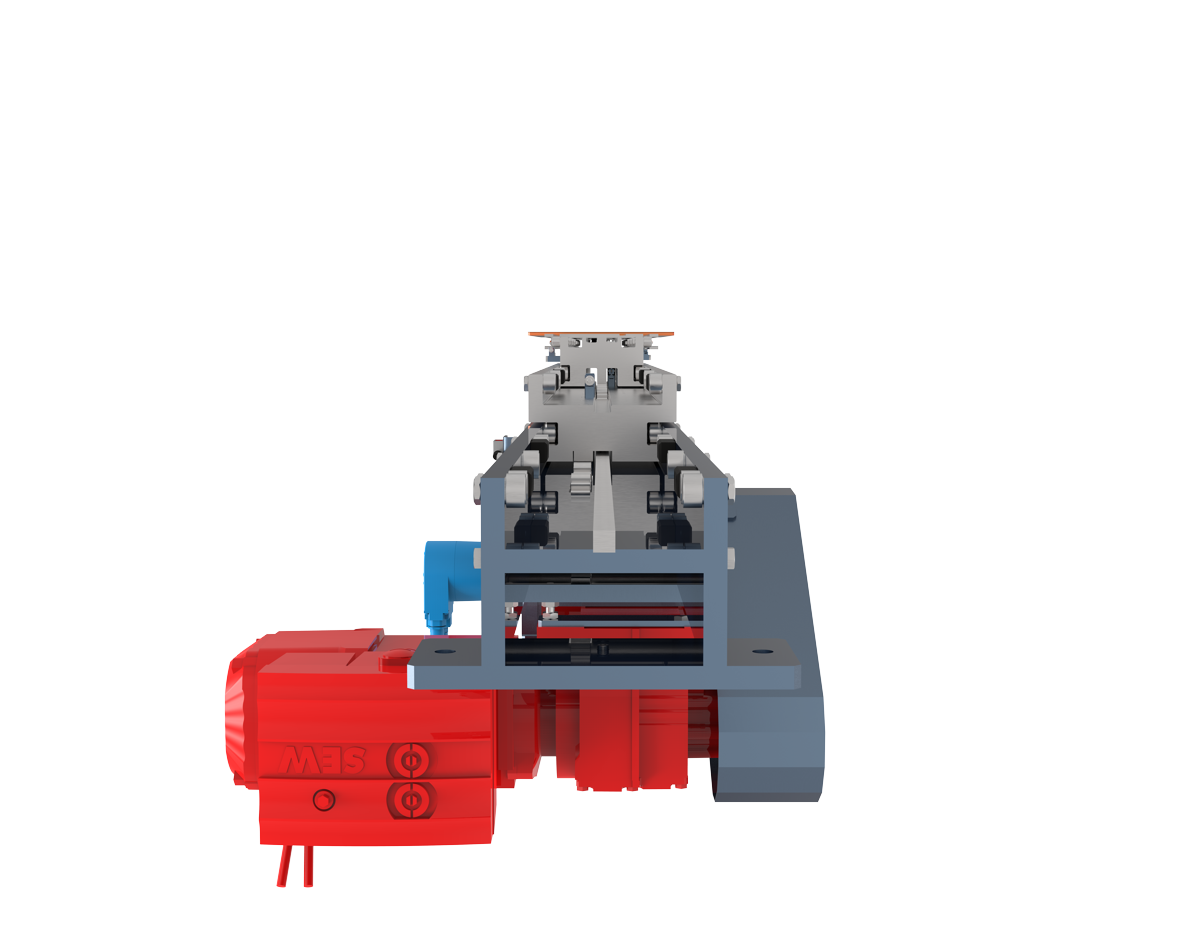

CRONOS 155 – Load up to 300 Kg (662 lB) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. Designed for the handling of pallets in the triple depth, the CRONOS 155 finds application where normal double-depth telescopic forks would be beyond the stroke limit, or where an even smaller bending, other parameters being equal, is needed. With an overall thickness of 155 mm, this equipment represents the solution to borderline cases in the sector of linear handling. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.

Clear

Description

CRONOS 155
Triple Depth – Load up to 300 Kg (662 Lb)

Standard length: from 800 mm to 1300 mm
Stroke: from 1800 mm to 3400 mm
Load: up to 300 kg (662 Lb)
Cross Section:  W x H = 250 x 154
Speed without load: up to 45 m/min
Acceleration without load: up to 1 m/s²

Specification

下叉长

, , ,

负载

,

满载最大弯曲

, , ,

行程

, , ,

上叉长

, , ,
