CRONOS 248

Out of Stock

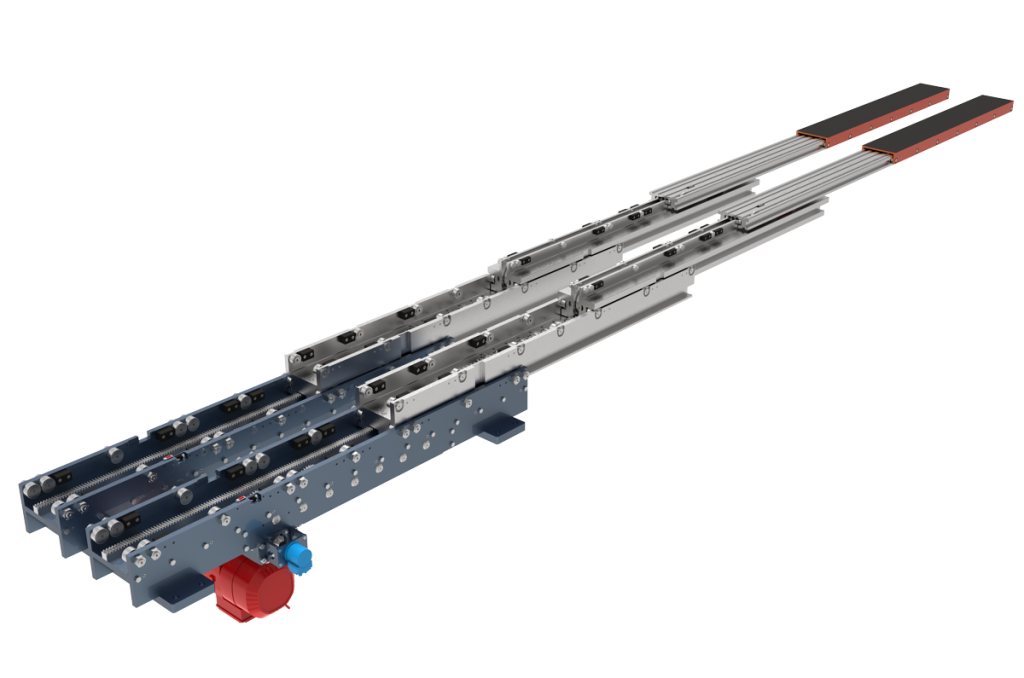

CRONOS 248 – Load up to 1200 Kg (2645 Lb) Like every product from the LHD Group: this Load Handling Device has been designed by the LHD Engineering team and assembled by the LHD Manufacturing Team. Designed for the handling of pallets in the triple depth, the CRONOS 248 finds application where normal double depth telescopic forks would be beyond the stroke limit, or where an even smaller bending, other parameters being equal, is needed. With an overall thickness of 248 mm, this equipment represents the solution to borderline cases in the sector of the linear handling. All LHD Group’s telescopic forks undergo accurate run tests and quality checks before delivery.

Clear

Description

CRONOS 248
Triple Depth – Load up to 1200 Kg (2645 Lb)

Standard length: from 1300 mm to 1600 mm
Stroke: from 3000 to 3700 mm
Load: up to 1200 kg (2645 Lb)
Cross Section:  W x H = 180 x 248 mm
Speed without load: 45 m/min
Acceleration without load: 1 m/s2

Specification

下叉长

, , , , ,

负载

, ,

满载最大弯曲

, , , ,

行程

, , , , ,

上叉长

, , , , ,
